Microscale Metal Additive Manufacturing by Solid-State Impact Bonding of Shaped Thin Films.

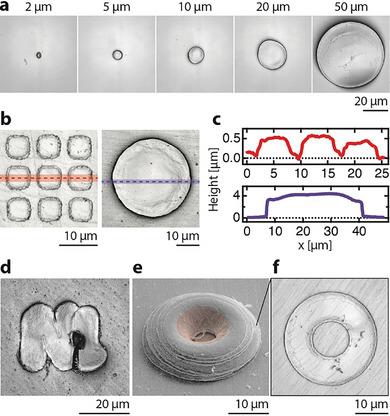

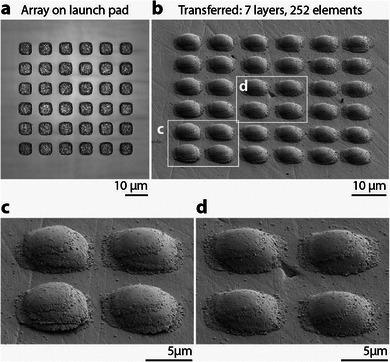

The deposition of device-grade inorganic materials is one key challenge toward the implementation of additive manufacturing (AM) in microfabrication, and to that end, a broad range of physico-chemical principles has been explored for 3D fabrication with micro- and nanoscale resolution. Yet, for metals, a process that achieves material quality rivalling that of established thin-film deposition methods, and at the same time, has the potential to combine high throughput production with a broad palette of processable materials, is still lacking. Here, the kinetic, solid-state bonding of metal thin films for the additive assembly of high-purity, high-density metals with micrometer-scale precision is introduced. Indirect laser ablation accelerates micrometer-thick gold films to hundreds of meters per second without their heating or ablation. Their subsequent impact on the substrate above a critical velocity forms a permanent, metallic bond in the solid state. Stacked layers are of high density (>99%). By defining thin-film layers with established lithographic methods prior to launch, a variable feature size (2-50 µm), arbitrary shape of bonded layers, and parallel transfer of up to 36 independent film units in a single shot, is demonstrated. Thus, the solid-state kinetic bonding principle as a viable and potentially versatile route for micro-scale AM of metals is established.
