Heterogeneous-IRS-Assisted Millimeter-Wave Systems: Element Position and Phase Shift Optimization.

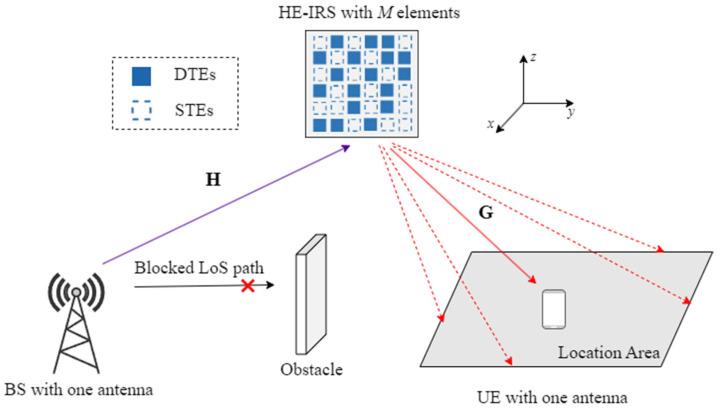

Intelligent reflecting surfaces (IRSs) have attracted extensive attention in the design of future communication networks. However, their large number of reflecting elements still results in non-negligible power consumption and hardware costs. To address this issue, we previously proposed a green heterogeneous IRS (HE-IRS) consisting of both dynamically tunable elements (DTEs) and statically tunable elements (STEs). Compared to conventional IRSs with only DTEs, the unique DTE-STE integrated structure introduces new challenges in optimizing the positions and phase shifts of the two types of elements. In this paper, we investigate the element position and phase shift optimization problems in HE-IRS-assisted millimeter-wave systems. We first propose a particle swarm optimization algorithm to determine the specific positions of the DTEs and STEs. Then, by decomposing the phase shift optimization of the two types of elements into two subproblems, we utilize the manifold optimization method to optimize the phase shifts of the STEs, followed by deriving a closed-form solution for those of the DTEs. Furthermore, we propose a low-complexity phase shift optimization algorithm for both DTEs and STEs based on the Cauchy-Schwarz bound. The simulation results show that with the tailored element position and phase shift optimization algorithms, the HE-IRS can achieve a competitive performance compared to that of the conventional IRS, but with much lower power consumption.
