10 GHz以上频率下人体佩戴设备吸收功率密度的可追溯评估
Traceable Assessment of the Absorbed Power Density of Body Mounted Devices at Frequencies Above 10 GHz.
作者信息
Chitnis Ninad, Karimi Fariba, Kühn Sven, Fallahi Arya, Christ Andreas, Kuster Niels
机构信息
Foundation for Research on Information Technologies in Society (IT'IS), Zurich, Switzerland.
Department of Information Technology and Electrical Engineering, Swiss Federal Institute of Technology (ETH), Zurich, Switzerland.
出版信息
Bioelectromagnetics. 2025 Sep;46(6):e70018. doi: 10.1002/bem.70018.

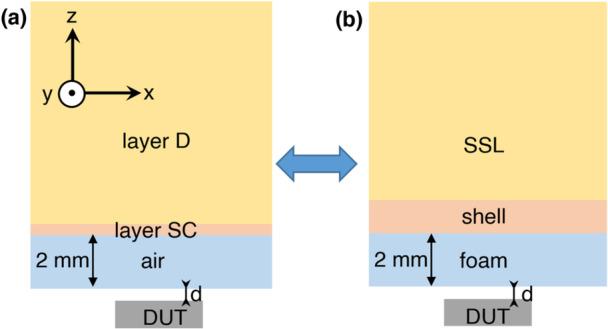

In this study, a comprehensive approach for the experimental assessment of the absorbed power density (APD) is developed. The method includes several novel components: (i) a specialized probe, (ii) a composite phantom, (iii) a reconstruction technique, (iv) a calibration method, and (v) a validation process. The described solution has been developed for the frequency range from 24 to 30 GHz, but can be extended to all frequency bands between 10 and 45 GHz. A novel composite phantom emulates the reflection and transmission coefficients of human skin for propagating and evanescent modes, while its increased penetration depth, in comparison to dermis tissue, enables the measurement of the induced electromagnetic fields (EMFs) with a new miniaturized dosimetric broadband probe. The implementation has a wide dynamic range and sufficient spatial resolution to use it for type approval of mobile devices. Its probe is calibrated with low uncertainty in a novel, traceable setup. A set of reference antennas with known numerical target values for the APD has been compiled to validate the measurement system. The validation demonstrates that the deviation is within the expanded uncertainty of 1.6 dB for pAPD and 1.5 dB for psAPD.
在本研究中,开发了一种用于实验评估吸收功率密度(APD)的综合方法。该方法包括几个新颖的组成部分:(i)一个专用探头,(ii)一个复合人体模型,(iii)一种重建技术,(iv)一种校准方法,以及(v)一个验证过程。所描述的解决方案是针对24至30 GHz的频率范围开发的,但可以扩展到10至45 GHz之间的所有频段。一种新型复合人体模型模拟了人体皮肤对传播模式和消逝模式的反射和传输系数,而与真皮组织相比,其增加的穿透深度使得能够使用新型小型化剂量宽带探头测量感应电磁场(EMF)。该实施方案具有宽动态范围和足够的空间分辨率,可用于移动设备的型式认可。其探头在一种新颖的、可溯源的装置中以低不确定度进行校准。已编制了一组具有已知APD数值目标值的参考天线,以验证测量系统。验证表明,对于pAPD,偏差在扩展不确定度1.6 dB以内,对于psAPD,偏差在1.5 dB以内。
