Analysis of the Microstructure and Mechanical Properties of Austenitic Stainless Steel 310 Manufactured via WAAM.

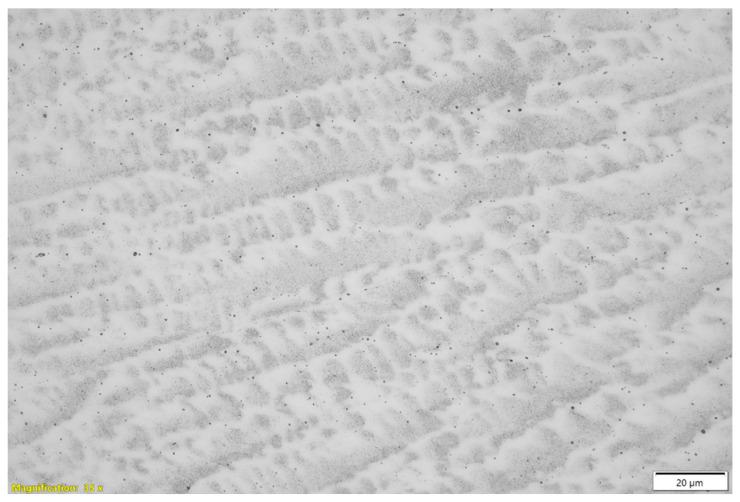

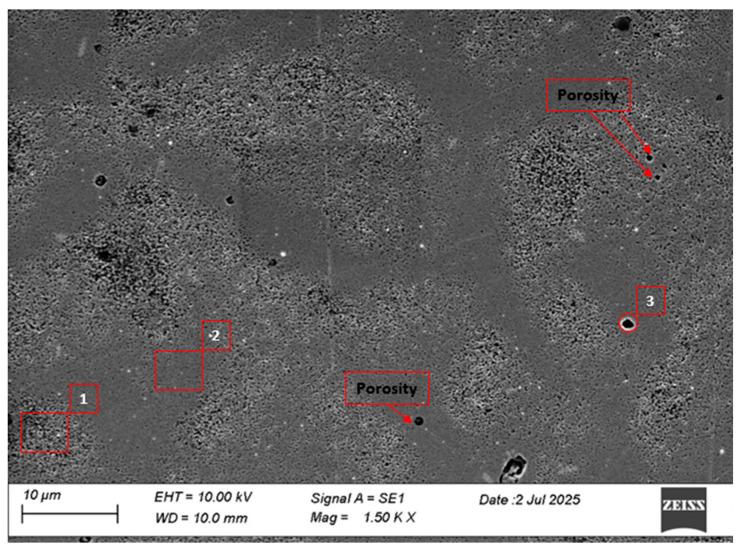

The objective of this study was to characterize austenitic stainless steel 310 produced by Wire and Arc Additive Manufacturing (WAAM), addressing a gap in the literature regarding this alloy. Microstructural, chemical, and mechanical analyses were performed. Optical and electron microscopy revealed a predominantly columnar grain structure with characteristic tracks along the deposition direction. Point and mapping EDS analyses indicated a homogeneous distribution of iron, chromium, and nickel; however, point measurements suggested a possible underestimation of nickel, likely due to high relative error. Tensile tests demonstrated anisotropic mechanical behavior, with yield strength meeting standards at 45° and 90°, but lower at 0°. Ultimate tensile strength and elongation were below conventional requirements, with a maximum elongation of 15% at 90°. Additionally, the sample exhibited a total porosity of approximately 0.89%, which contributes to the reduction in mechanical properties, especially in the direction parallel to the deposition tracks. Overall, the WAAM-produced 310 stainless steel presented a microstructure similar to hot-rolled and annealed AISI 310 steel, but with distinctive features related to the additive process, such as mechanical anisotropy and microstructural directionality. These limitations highlight the need for process optimization to improve mechanical performance but reinforce the alloy's structural potential in additive manufacturing.
