Zhuge Ronghua, Fogarty Kevin E, Tuft Richard A, Walsh John V
Biomedical Imaging Group, Department of Physiology, University of Massachusetts Medical School, Worcester, MA 01655, USA.
J Gen Physiol. 2002 Jul;120(1):15-27. doi: 10.1085/jgp.20028571.

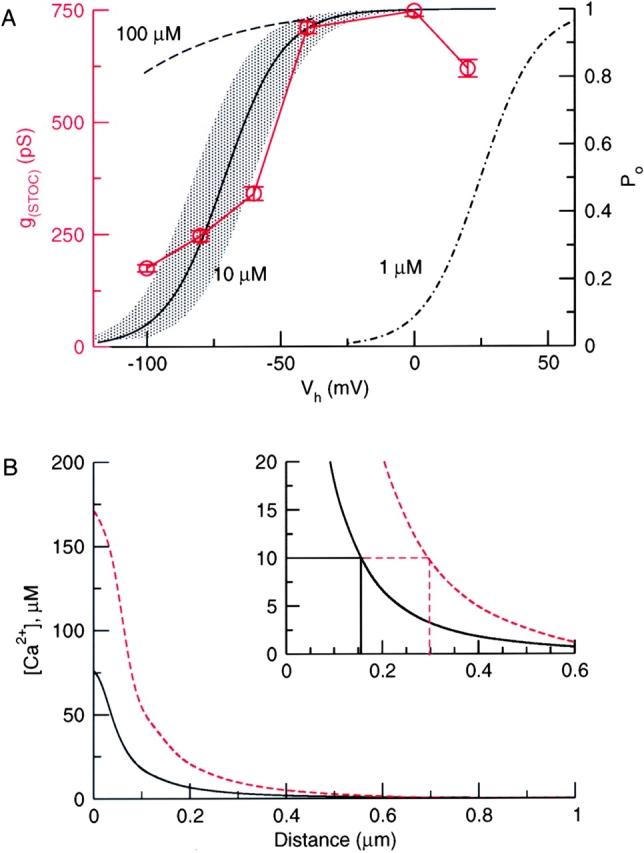

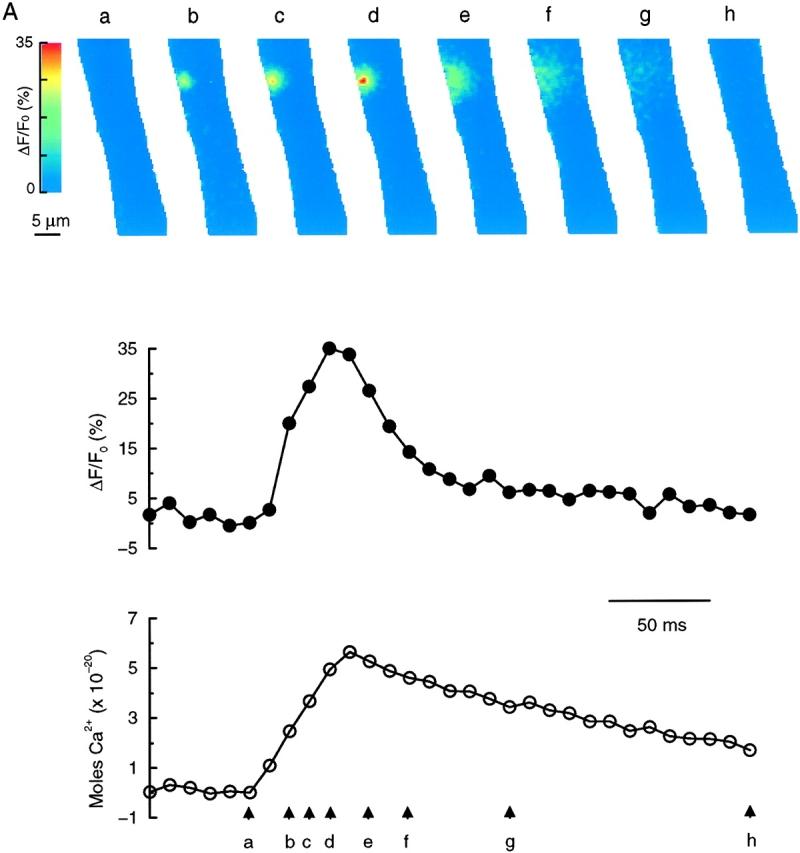

Ca(2+) sparks are small, localized cytosolic Ca(2+) transients due to Ca(2+) release from sarcoplasmic reticulum through ryanodine receptors. In smooth muscle, Ca(2+) sparks activate large conductance Ca(2+)-activated K(+) channels (BK channels) in the spark microdomain, thus generating spontaneous transient outward currents (STOCs). The purpose of the present study is to determine experimentally the level of Ca(2+) to which the BK channels are exposed during a spark. Using tight seal, whole-cell recording, we have analyzed the voltage-dependence of the STOC conductance (g((STOC))), and compared it to the voltage-dependence of BK channel activation in excised patches in the presence of different [Ca(2+)]s. The Ca(2+) sparks did not change in amplitude over the range of potentials of interest. In contrast, the magnitude of g((STOC)) remained roughly constant from 20 to -40 mV and then declined steeply at more negative potentials. From this and the voltage dependence of BK channel activation, we conclude that the BK channels underlying STOCs are exposed to a mean [Ca(2+)] on the order of 10 microM during a Ca(2+) spark. The membrane area over which a concentration > or =10 microM is reached has an estimated radius of 150-300 nm, corresponding to an area which is a fraction of one square micron. Moreover, given the constraints imposed by the estimated channel density and the Ca(2+) current during a spark, the BK channels do not appear to be uniformly distributed over the membrane but instead are found at higher density at the spark site.
钙火花是由于肌浆网通过雷诺丁受体释放钙离子而产生的小的、局部的胞质钙瞬变。在平滑肌中,钙火花激活火花微区内的大电导钙激活钾通道(BK通道),从而产生自发瞬时外向电流(STOCs)。本研究的目的是通过实验确定钙火花期间BK通道所暴露的钙离子水平。使用紧密封接的全细胞记录,我们分析了STOC电导(g(STOC))的电压依赖性,并将其与在不同钙离子浓度下切除膜片上BK通道激活的电压依赖性进行比较。在感兴趣的电位范围内,钙火花的幅度没有变化。相反,g(STOC)的大小在20到-40 mV之间大致保持恒定,然后在更负的电位下急剧下降。根据这一点以及BK通道激活的电压依赖性,我们得出结论,STOCs所依赖的BK通道在钙火花期间暴露于平均约10微摩尔的钙离子浓度下。达到≥10微摩尔浓度的膜面积估计半径为150 - 300纳米,相当于一平方微米的一小部分面积。此外,考虑到估计的通道密度和火花期间的钙电流所施加的限制,BK通道似乎并非均匀分布在膜上,而是在火花部位密度更高。
