在切口内切酶产生的相邻切口位点对双链DNA中的独特序列进行标记。

Labeling of unique sequences in double-stranded DNA at sites of vicinal nicks generated by nicking endonucleases.

作者信息

Kuhn Heiko, Frank-Kamenetskii Maxim D

机构信息

Center for Advanced Biotechnology and Department of Biomedical Engineering, Boston University, MA 02215, USA.

出版信息

Nucleic Acids Res. 2008 Apr;36(7):e40. doi: 10.1093/nar/gkn107. Epub 2008 Mar 15.

DOI:10.1093/nar/gkn107
PMID:18344522
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC2373456/
Abstract

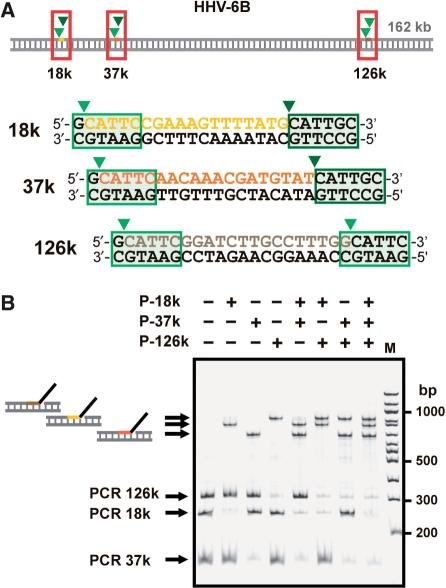

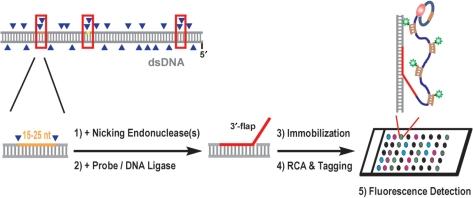

We describe a new approach for labeling of unique sequences within dsDNA under nondenaturing conditions. The method is based on the site-specific formation of vicinal nicks, which are created by nicking endonucleases (NEases) at specified DNA sites on the same strand within dsDNA. The oligomeric segment flanked by both nicks is then substituted, in a strand displacement reaction, by an oligonucleotide probe that becomes covalently attached to the target site upon subsequent ligation. Monitoring probe hybridization and ligation reactions by electrophoretic mobility retardation assay, we show that selected target sites can be quantitatively labeled with excellent sequence specificity. In these experiments, predominantly probes carrying a target-independent 3' terminal sequence were employed. At target labeling, thus a branched DNA structure known as 3'-flap DNA is obtained. The single-stranded terminus in 3'-flap DNA is then utilized to prime the replication of an externally supplied ssDNA circle in a rolling circle amplification (RCA) reaction. In model experiments with samples comprised of genomic lambda-DNA and human herpes virus 6 type B (HHV-6B) DNA, we have used our labeling method in combination with surface RCA as reporter system to achieve both high sequence specificity of dsDNA targeting and high sensitivity of detection. The method can find applications in sensitive and specific detection of viral duplex DNA.

摘要

我们描述了一种在非变性条件下对双链DNA内独特序列进行标记的新方法。该方法基于邻位切口的位点特异性形成,这些切口由切口内切酶(NEases)在双链DNA同一链上的特定DNA位点产生。然后,在链置换反应中,由两个切口侧翼的寡聚片段被寡核苷酸探针取代,该探针在随后的连接时共价连接到靶位点。通过电泳迁移率阻滞分析监测探针杂交和连接反应,我们表明选定的靶位点可以以优异的序列特异性进行定量标记。在这些实验中,主要使用携带与靶标无关的3'末端序列的探针。在靶标标记时,因此获得了一种称为3'-瓣状DNA的分支DNA结构。然后利用3'-瓣状DNA中的单链末端在滚环扩增(RCA)反应中引发外部提供的单链DNA环的复制。在由基因组λ-DNA和人类疱疹病毒6型B(HHV-6B)DNA组成的样品的模型实验中,我们将标记方法与表面RCA作为报告系统结合使用,以实现双链DNA靶向的高序列特异性和高检测灵敏度。该方法可应用于病毒双链DNA的灵敏和特异性检测。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/cfeec0ac074b/gkn107f7.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/63786845b8fd/gkn107f1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/202257891153/gkn107f2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/9b92e6edc7f4/gkn107f3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/7530420eaa9e/gkn107f4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/aef169563cf3/gkn107f5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/cf1b729b5841/gkn107f6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/cfeec0ac074b/gkn107f7.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/63786845b8fd/gkn107f1.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/202257891153/gkn107f2.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/9b92e6edc7f4/gkn107f3.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/7530420eaa9e/gkn107f4.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/aef169563cf3/gkn107f5.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/cf1b729b5841/gkn107f6.jpg
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f67a/2373456/cfeec0ac074b/gkn107f7.jpg
