Department of Microbiology, Immunology & Tropical Medicine, George Washington University Medical Center, Washington, DC, United States of America.
PLoS Negl Trop Dis. 2010 Feb 2;4(2):e593. doi: 10.1371/journal.pntd.0000593.
The schistosome egg represents an attractive developmental stage at which to target transgenes because of the high ratio of germ to somatic cells, because the transgene might be propagated and amplified by infecting snails with the miracidia hatched from treated eggs, and because eggs can be readily obtained from experimentally infected rodents.

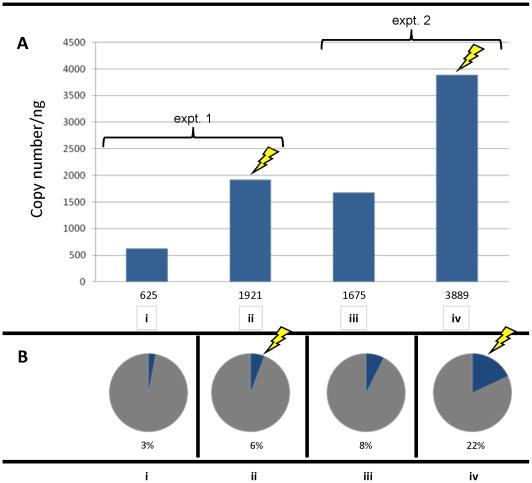

METHODS/FINDINGS: We investigated the utility of square wave electroporation to deliver transgenes and other macromolecules including fluorescent (Cy3) short interference (si) RNA molecules, messenger RNAs, and virions into eggs of Schistosoma mansoni. First, eggs were incubated in Cy3-labeled siRNA with and without square wave electroporation. Cy3-signals were detected by fluorescence microscopy in eggs and miracidia hatched from treated eggs. Second, electroporation was employed to introduce mRNA encoding firefly luciferase into eggs. Luciferase activity was detected three hours later, whereas luciferase was not evident in eggs soaked in the mRNA. Third, schistosome eggs were exposed to Moloney murine leukemia virus virions (MLV) pseudotyped with vesicular stomatitis virus glycoprotein (VSVG). Proviral transgenes were detected by PCR in genomic DNA from miracidia hatched from virion-exposed eggs, indicating the presence of transgenes in larval schistosomes that had been either soaked or electroporated. However, quantitative PCR (qPCR) analysis determined that electroporation of virions resulted in 2-3 times as many copies of provirus in these schistosomes compared to soaking alone. In addition, relative qPCR indicated a copy number for the proviral luciferase transgene of approximately 20 copies for 100 copies of a representative single copy endogenous gene (encoding cathepsin D).
Square wave electroporation facilitates introduction of transgenes into the schistosome egg. Electroporation was more effective for the transduction of eggs with pseudotyped MLV than simply soaking the eggs in virions. These findings underscore the potential of targeting the schistosome egg for germ line transgenesis.
由于生殖细胞与体细胞的比例高,血吸虫卵是一个有吸引力的发育阶段,可作为转基因的靶标;因为通过用处理过的卵孵化的毛蚴感染蜗牛,可以繁殖和扩增转基因,并且可以从实验感染的啮齿动物中轻易获得卵。
方法/发现:我们研究了方波电穿孔在将转基因和其他大分子(包括荧光(Cy3)短干扰(si)RNA 分子、信使 RNA 和病毒粒子)递送入曼氏血吸虫卵中的效用。首先,用 Cy3 标记的 siRNA 孵育卵,同时进行方波电穿孔。用荧光显微镜检测处理过的卵和孵出的毛蚴中的 Cy3 信号。其次,采用电穿孔将编码萤火虫荧光素酶的 mRNA 导入卵中。三小时后检测到荧光素酶活性,而浸泡在 mRNA 中的卵则没有荧光素酶。第三,用水疱性口炎病毒糖蛋白(VSVG)假型化的 Moloney 鼠白血病病毒病毒粒子(MLV)暴露于血吸虫卵。从暴露于病毒粒子的卵孵化的毛蚴的基因组 DNA 中通过 PCR 检测到前病毒转基因,表明已转染幼虫血吸虫中的转基因,这些幼虫血吸虫既经过浸泡也经过电穿孔。然而,定量 PCR(qPCR)分析确定,与单独浸泡相比,电穿孔病毒粒子导致这些血吸虫中前病毒的拷贝数增加了 2-3 倍。此外,相对 qPCR 表明,对于前病毒荧光素酶转基因,相对于一个代表性的单拷贝内源性基因(编码组织蛋白酶 D)的 100 个拷贝,其拷贝数约为 20 个。
方波电穿孔有助于将转基因导入血吸虫卵。电穿孔比简单地将卵浸泡在病毒粒子中更有效地转导卵。这些发现强调了针对血吸虫卵进行种系转基因的潜力。
