State Key Laboratory of Natural and Biomimetic Drugs, School of Pharmaceutical Sciences, Peking University No. 38, Xueyuan Rd, Beijing 100191, China.
Nucleic Acids Res. 2010 Jun;38(11):3848-55. doi: 10.1093/nar/gkq079. Epub 2010 Feb 17.

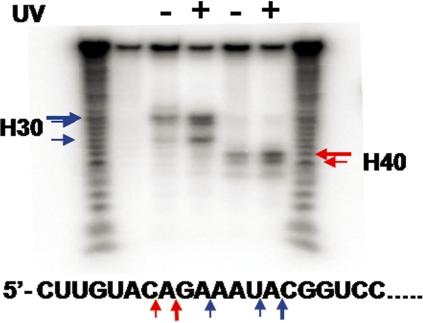

Caged antisense oligodeoxynucleotides (asODNs) are synthesized by linking two ends of linear oligodeoxynucleotides using a photocleavable linker. Two of them (H30 and H40) have hairpin-like structures which show a large difference in thermal stability (Delta T(m) = 17.5 degrees C and 11.6 degrees C) comparing to uncaged ones. The other three (C20, C30 and C40) without stable secondary structures have the middle 20 deoxynucleotides complementary to 40-mer RNA. All caged asODNs have restricted opening which provides control over RNA/asODN interaction. RNase H assay results showed that 40-mer RNA digestion could be photo-modulated 2- to 3-fold upon light-activation with H30, H40, C30 and C40, while with C20, RNA digestion was almost not detectable; however, photo-activation triggered >20-fold increase of RNA digestion. And gel shift assays showed that it needed >0.04 microM H40 and 0.5 microM H30 to completely bind 0.02 microM 40-mer RNA, and for C40 and C30, it needed >0.2 microM and 0.5 microM for 0.02 microM 40-mer RNA binding. However, even 4 microM C20 was not able to fully bind the same concentration of 40-mer RNA. By simple adjustment of ring size of caged asODNs, we could successfully photoregulate their hybridization with mRNA and target RNA hydrolysis by RNase H with light activation.
笼状反义寡核苷酸(asODN)是通过用光裂解连接体连接线性寡核苷酸的两个末端合成的。其中两种(H30 和 H40)具有发夹样结构,与未笼状的寡核苷酸相比,其热稳定性差异很大(Delta T(m)= 17.5°C 和 11.6°C)。另外三种(C20、C30 和 C40)没有稳定的二级结构,其中间的 20 个脱氧核苷酸与 40 -mer RNA 互补。所有笼状 asODN 都具有受限的开口,这可以控制 RNA/asODN 相互作用。RNase H 测定结果表明,在光激活下,H30、H40、C30 和 C40 的光调节可以使 40-mer RNA 消化增加 2 至 3 倍,而 C20 的 RNA 消化几乎无法检测到;然而,光激活可引发 RNA 消化增加>20 倍。凝胶迁移分析表明,H40 需要>0.04 microM 和 H30 需要>0.5 microM 才能完全结合 0.02 microM 40-mer RNA,而对于 C40 和 C30,需要>0.2 microM 和 0.5 microM 才能结合 0.02 microM 40-mer RNA。然而,即使 4 microM 的 C20 也不能完全结合相同浓度的 40-mer RNA。通过简单调整笼状 asODN 的环大小,我们可以成功地用光调节它们与 mRNA 的杂交以及 RNase H 对靶 RNA 的水解。
