（E）-4-氯-N'-（4-羟基-亚苄基）-苯甲酰肼
(E)-4-Chloro-N'-(4-hydroxy-benzyl-idene)-benzohydrazide.
作者信息
Yang De-Suo
机构信息
Department of Chemistry and Chemical Engineering, Baoji University of Arts and Sciences, Baoji 721007, People's Republic of China.
出版信息
Acta Crystallogr Sect E Struct Rep Online. 2008 Aug 30;64(Pt 9):o1849. doi: 10.1107/S1600536808027013.
Abstract

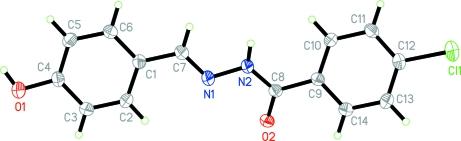

The mol-ecule of the title compound, C(14)H(11)ClN(2)O(2), displays a trans configuration with respect to the C=N double bond. The dihedral angle between the two benzene rings is 12.8 (3)°. In the crystal structure, mol-ecules are linked through inter-molecular O-H⋯O and N-H⋯O hydrogen bonds and C-H⋯π inter-actions, forming a three-dimensional network.
摘要
标题化合物C(14)H(11)ClN(2)O(2)的分子相对于C=N双键呈反式构型。两个苯环之间的二面角为12.8 (3)°。在晶体结构中，分子通过分子间的O-H⋯O和N-H⋯O氢键以及C-H⋯π相互作用相连，形成三维网络。
