1-[4-(Diamino-methyl-eneamino-sulfon-yl)phenyl-iminiometh-yl]-2-naphtholate N,N-dimethyl-formamide disolvate.

作者信息

El-Ghamry Hoda, Issa Raafat, El-Baradie Kamal, Isagai Keiko, Masaoka Shigeyuki, Sakai Ken

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2008 Jun 28;64(Pt 7):o1350-1. doi: 10.1107/S1600536808018710.

Abstract

The asymmetric unit the title compound, C(18)H(16)N(4)O(3)S·2C(3)H(7)NO, contains a mol-ecule in a zwitterionic form with a deprotonated hydroxyl group and an iminium group, and two dimethyl-formamide solvent mol-ecules. The dihedral angles of the guanidine group and the naphthyl ring system with respect to the central benzene ring are 76.04 (7) and 3.45 (9)°, respectively. The conformation of the mol-ecule may be influenced, in part, by two intra-molecular hydrogen bonds, while in the crystal structure, inter-molecular hydrogen bonds form one-dimensional chains along [010].

摘要

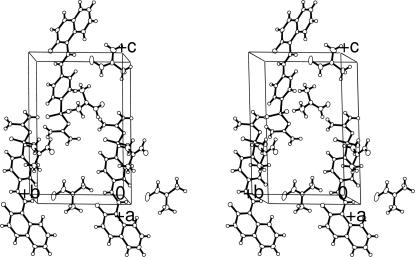

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0302/2961766/42615715e9a7/e-64-o1350-fig1.jpg
