紧凑型超快半导体盘激光器:面向基于绿色荧光蛋白在活生物体中的非线性应用。

Compact ultrafast semiconductor disk laser: targeting GFP based nonlinear applications in living organisms.

作者信息

Aviles-Espinosa Rodrigo, Filippidis George, Hamilton Craig, Malcolm Graeme, Weingarten Kurt J, Südmeyer Thomas, Barbarin Yohan, Keller Ursula, Santos Susana I C O, Artigas David, Loza-Alvarez Pablo

出版信息

Biomed Opt Express. 2011 Feb 28;2(4):739-47. doi: 10.1364/BOE.2.000739.

Abstract

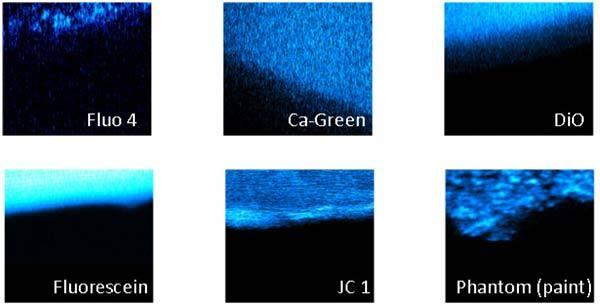

We present a portable ultrafast Semiconductor Disk Laser (SDL) (or vertical extended cavity surface emitting laser-VECSELs), to be used for nonlinear microscopy. The SDL is modelocked using a quantum-dot semiconductor saturable absorber mirror (SESAM), delivering an average output power of 287 mW, with 1.5 ps pulses at 500 MHz and a central wavelength of 965 nm. Specifically, despite the fact of having long pulses and high repetition rates, we demonstrate the potential of this laser for Two-Photon Excited Fluorescence (TPEF) imaging of in vivo Caenorhabditis elegans (C. elegans) expressing Green Fluorescent Protein (GFP) in a set of neuronal processes and cell bodies. Efficient TPEF imaging is achieved due to the fact that this wavelength matches the peak of the two-photon action cross section of this widely used fluorescent marker. The SDL extended versatility is shown by presenting Second Harmonic Generation images of pharynx, uterus, body wall muscles and its potential to be used to excite other different commercial dyes. Importantly this non-expensive, turn-key, compact laser system could be used as a platform to develop portable nonlinear bio-imaging devices.

摘要

我们展示了一种便携式超快半导体盘激光器(SDL)(或垂直外腔面发射激光器-VECSEL),用于非线性显微镜检查。该SDL使用量子点半导体可饱和吸收镜(SESAM)进行锁模,平均输出功率为287 mW,在500 MHz频率下产生1.5 ps的脉冲,中心波长为965 nm。具体而言,尽管脉冲较长且重复频率较高,但我们证明了这种激光器在对一组神经元突起和细胞体中表达绿色荧光蛋白(GFP)的活体秀丽隐杆线虫(C. elegans)进行双光子激发荧光(TPEF)成像方面的潜力。由于该波长与这种广泛使用的荧光标记物的双光子作用截面峰值相匹配,因此实现了高效的TPEF成像。通过展示咽部、子宫、体壁肌肉的二次谐波产生图像以及其用于激发其他不同商业染料的潜力,展示了SDL的扩展通用性。重要的是,这种价格不贵、交钥匙式的紧凑型激光系统可作为开发便携式非线性生物成像设备的平台。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1414/3072117/7b3514540615/boe-2-4-739-g001.jpg
