硫酸二水合双(2-氨基-3-羧基-吡嗪-1-鎓)

Bis(2-amino-3-carb-oxy-pyrazin-1-ium) sulfate dihydrate.

作者信息

Berrah Fadila, Ouakkaf Amira, Bouacida Sofiane, Roisnel Thierry

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2011 Feb 23;67(Pt 3):o677-8. doi: 10.1107/S1600536811005824.

Abstract

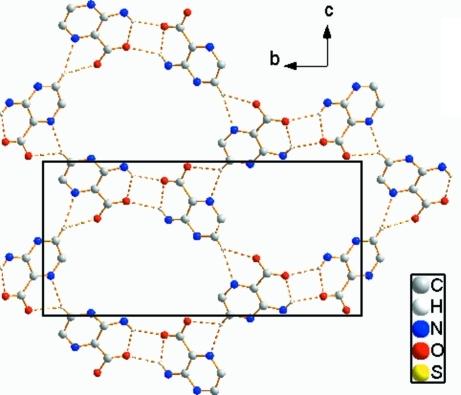

The crystal structure of the title compound, 2C(5)H(6)N(3)O(2) (+)·SO(4) (2-)·2H(2)O, displays a variety of N-H⋯O and O-H⋯O hydrogen bonds in which all potential donors and acceptors are involved. In the crystal, cations and anions are inter-connected, forming R(3) (3)(10) and R(2) (2)(8) ring motifs whereas the anions and water mol-ecules form R(2) (3)(10) rings, which develop in chains running along [100]. The resulting three-dimensional network exhibits undulating sheets parallel to (011), marked by the presence of R(6) (6)(26) rings in which six cations are involved.

摘要

标题化合物2C₅H₆N₃O₂⁺·SO₄²⁻·2H₂O的晶体结构显示出多种N-H⋯O和O-H⋯O氢键,其中所有潜在的供体和受体都参与其中。在晶体中,阳离子和阴离子相互连接,形成R₃³(10)和R₂²(8)环 motif,而阴离子和水分子形成R₂³(10)环,这些环沿着[100]方向形成链状结构。由此产生的三维网络呈现出平行于(011)的起伏片状结构,其特征是存在包含六个阳离子的R₆⁶(26)环。
