2-Amino-3-carb-oxy-pyrazin-1-ium dihydrogen phosphate.

作者信息

Berrah Fadila, Bouacida Sofiane, Roisnel Thierry

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2011 Jun 1;67(Pt 6):o1409-10. doi: 10.1107/S1600536811017521. Epub 2011 May 14.

Abstract

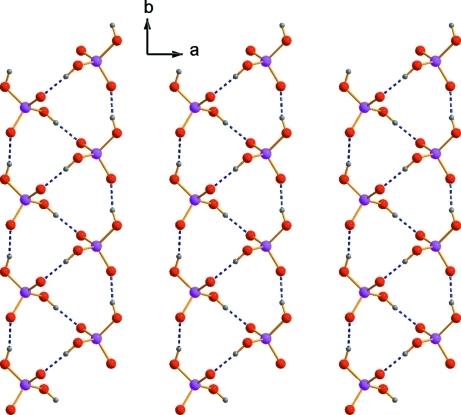

In the crystal structure of the title compound, C(5)H(6)N(3)O(2) (+)·H(2)PO(4) (-), the dihydrogen phosphate anions are linked through short O-H⋯O hydrogen bonds, forming infinite double chains running parallel to the b axis. Centrosymetric N-H⋯O hydrogen-bonded cationic dimers form bridges between these chains by means of inter-molecular N-H⋯O and O-H⋯O hydrogen bonds, leading to a two-dimensional network parallel to (100) in which R(3) (3)(12), R(4) (3)(10) R(2) (2)(8) and C(4) graph-set motifs are generated. Weak inter-molecular C-H⋯O hydrogen bonds connect these layers, forming a three-dimensional network.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/0743/3120607/2128348f2567/e-67-o1409-fig1.jpg
