{μ-1,5-Bis[(E)-1-(2-pyrid-yl)ethyl-idene]carbonohydrazidato(1-)}bis-[chlorido-methano-lcopper(II)] perchlorate.

作者信息

Huang Wei

机构信息

Anhui Key Laboratory of Functional Coordination Compounds, School of Chemistry and Chemical Engineering, Anqing Teachers College, Anqing, 246011 Anhui, People's Republic of China.

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2009 Oct 10;65(Pt 11):m1347. doi: 10.1107/S1600536809040471.

Abstract

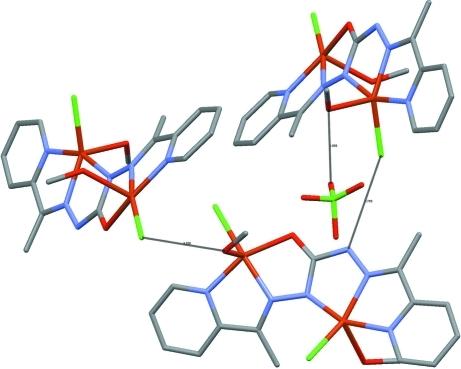

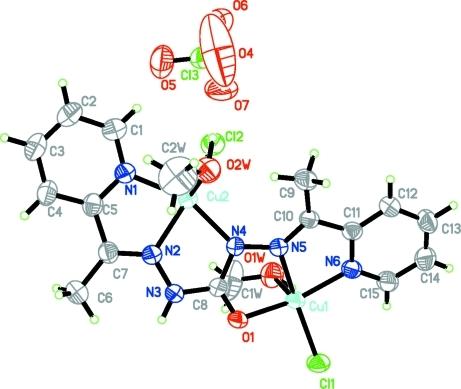

The title dinuclear copper complex, [Cu(2)(C(15)H(15)N(6)O)Cl(2)(CH(3)OH)(2)]ClO(4), was prepared by the reaction of copper(II) chloride with bis-[1-(2-pyrid-yl)ethyl-idene]carbonohydrazide in the presence of sodium perchlorate in a methanol solution. It features a mono-deprotonated bis-tridentate ligand, which coordinates to two independent Cu(II) ions, one of which is coordinated by pyridyl N, hydrazyl N and carbonyl O atoms. The second Cu(II) ion is coordinated by the pyridyl N and two hydrazyl N atoms from different hydrazyl groups. The coordination environments of both Cu(II) ions are completed by a chloride ion and a methanol mol-ecule. The dihedral angle between the pyridyl groups is 27.46 (10)°. The crystal packing is stabilized by O-H⋯O(perchlorate), O-H⋯Cl and N-H⋯Cl hydrogen bonding.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1501/2971001/8e6ddee08296/e-65-m1347-fig1.jpg
