聚[[二水合双(μ(2)-4,4'-联吡啶)-锰(II)]双-[2-(2-羧基苯基二硫基)苯甲酸酯]]

Poly[[diaqua-bis(μ(2)-4,4'-bipyridine)-manganese(II)] bis-[2-(2-carboxy-phenyl-di-sulfanyl)benzoate]].

作者信息

Hu Min, Ma Song-Tao, Guo Liang-Qi, Fang Shao-Ming

机构信息

Zhengzhou University of Light Industry, Henan Provincial Key Laboratory of Surface and Interface Science, Henan, Zhengzhou 450002, People's Republic of China.

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2009 Apr 22;65(Pt 5):m538-9. doi: 10.1107/S1600536809013646.

Abstract

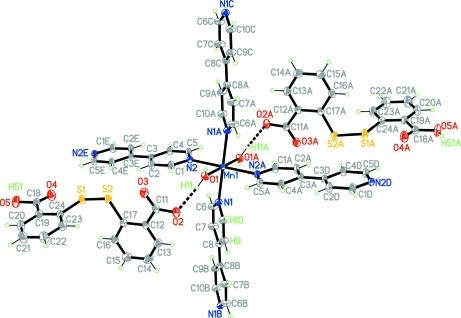

The title complex, {Mn(C(10)H(8)N(2))(2)(H(2)O)(2)(2)}(n), contains an octa-hedrally coordinated Mn(II) cation and 2-(2-carboxy-phenyl-disulfan-yl)benzoate anions. The Mn(II) center is situated on a crystallographic center of inversion and is coordinated by four 4,4'-bipyridine (4,4'-bipy) ligands and two water mol-ecules. The 4,4'-bipy ligands act as bridging ligands, producing a fishing-net-like two-dimensional framework. In the crystal structure, this positively charged framework is charge balanced by 2-(2-carboxy-phenyl-disulfan-yl)benzoate anions that form a separate anionic two-dimensional framework via inter-molecular O-H⋯O hydrogen bonds and C-H⋯π stacking inter-actions. Additional inter-molecular O-H⋯O hydrogen bonds link the cationic and anionic frameworks to form the three-dimensional crystal structure.

摘要

标题配合物{Mn(C₁₀H₈N₂)₂(H₂O)₂₂}ₙ包含一个八面体配位的Mn(II)阳离子和2-(2-羧基苯基二硫烷基)苯甲酸根阴离子。Mn(II)中心位于一个晶体学反演中心上,由四个4,4'-联吡啶(4,4'-bipy)配体和两个水分子配位。4,4'-bipy配体作为桥连配体,形成一个类似渔网的二维框架。在晶体结构中,这个带正电荷的框架通过2-(2-羧基苯基二硫烷基)苯甲酸根阴离子实现电荷平衡,这些阴离子通过分子间O-H⋯O氢键和C-H⋯π堆积相互作用形成一个独立的阴离子二维框架。额外的分子间O-H⋯O氢键将阳离子和阴离子框架连接起来,形成三维晶体结构。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/ecf5/2977590/5c9338959776/e-65-0m538-fig1.jpg
