4,4'-Dichloro-2,2'-[(3aR,7aR/3aS,7aS)-2,3,3a,4,5,6,7,7a-octa-hydro-1H-1,3-benzimidazole-1,3-di-yl)bis-(methyl-ene)]diphenol.

作者信息

Rivera Augusto, Quiroga Diego, Ríos-Motta Jaime, Dušek Michal, Fejfarová Karla

出版信息

Acta Crystallogr Sect E Struct Rep Online. 2010 Sep 30;66(Pt 10):o2643. doi: 10.1107/S160053681003792X.

Abstract

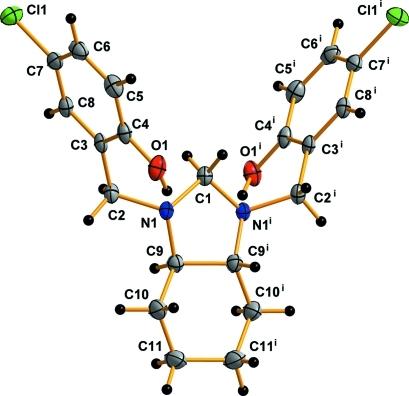

Mol-ecules of the the title compound, C(21)H(24)Cl(2)N(2)O(2), are located on a twofold rotation axis, which passes through the C atom linking the two N atoms. Two intra-molecular O-H⋯N hydrogen bonds were observed. In the crystal, non-classical inter-molecular C-H⋯O hydrogen bonds link the mol-ecules into chains along the a axis. The crystal studied was a racemic twin.

摘要
https://cdn.ncbi.nlm.nih.gov/pmc/blobs/f8f2/2983180/18a332581795/e-66-o2643-fig1.jpg
