4-氧代-2,3,4,9-四氢-1H-咔唑-3-羧酸乙酯
Ethyl 4-oxo-2,3,4,9-tetra-hydro-1H-carbazole-3-carboxyl-ate.
作者信息
Gündoğdu Cevher, Göçmentürk Mustafa, Ergün Yavuz, Tercan Barış, Hökelek Tuncer
出版信息
Acta Crystallogr Sect E Struct Rep Online. 2011 Jun 1;67(Pt 6):o1470-1. doi: 10.1107/S1600536811018678. Epub 2011 May 20.

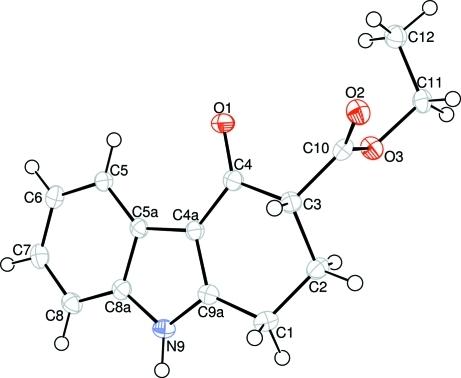

In the title compound, C(15)H(15)NO(3), the carbazole skeleton includes an eth-oxy-carbonyl group at the 3-position. In the indole ring system, the benzene and pyrrole rings are nearly coplanar, forming a dihedral angle of 0.89 (4)°. The cyclo-hexenone ring has an envelope conformation. In the crystal, inter-molecular N-H⋯O and C-H⋯O hydrogen bonds link the mol-ecules into a three dimensional network. A weak C-H⋯π inter-action is also observed.
在标题化合物C₁₅H₁₅NO₃中，咔唑骨架在3位包含一个乙氧羰基。在吲哚环系中，苯环和吡咯环近乎共面，形成的二面角为0.89 (4)°。环己烯酮环具有信封式构象。在晶体中，分子间的N-H⋯O和C-H⋯O氢键将分子连接成三维网络。还观察到一个弱的C-H⋯π相互作用。
