N'-(4-氯-亚苄基)-2-[4-(甲硫基)苯基]乙酰肼
N'-(4-Chloro-benzyl-idene)-2-[4-(methyl-sulfan-yl)phen-yl]acetohydrazide.
作者信息
Fun Hoong-Kun, Hemamalini Madhukar, Sumangala V, Prasad D Jagadeesh, Poojary Boja
出版信息
Acta Crystallogr Sect E Struct Rep Online. 2011 Nov;67(Pt 11):o2847. doi: 10.1107/S1600536811039857. Epub 2011 Oct 5.
Abstract

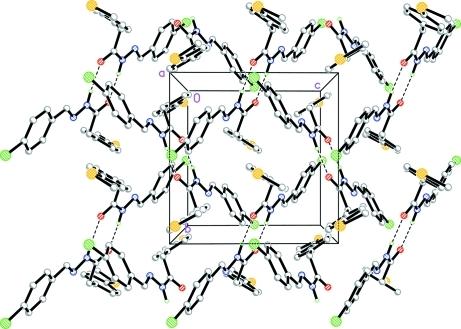

In the title compound, C(16)H(15)ClN(2)OS, the hydrazine group is twisted slightly: the C-N-N-C torsion angle is 175.46 (13)°. The dihedral angle between the two terminal aromatic rings is 87.01 (8)°. In the crystal, inversion dimers linked by pairs of N-H⋯O hydrogen bonds generate R(2) (2)(8) loops. The dimers are further linked by weak C-H⋯π inter-actions.
摘要
在标题化合物C(16)H(15)ClN(2)OS中，肼基略有扭曲：C-N-N-C扭转角为175.46 (13)°。两个末端芳香环之间的二面角为87.01 (8)°。在晶体中，由N-H⋯O氢键对连接的反演二聚体形成R(2) (2)(8)环。二聚体通过弱C-H⋯π相互作用进一步连接。
