Roche Pharma Research & Early Development, Large Molecule Research, Nonnenwald 2, D-82372 Penzberg, Germany.
Protein Eng Des Sel. 2012 Oct;25(10):571-80. doi: 10.1093/protein/gzs064. Epub 2012 Sep 13.

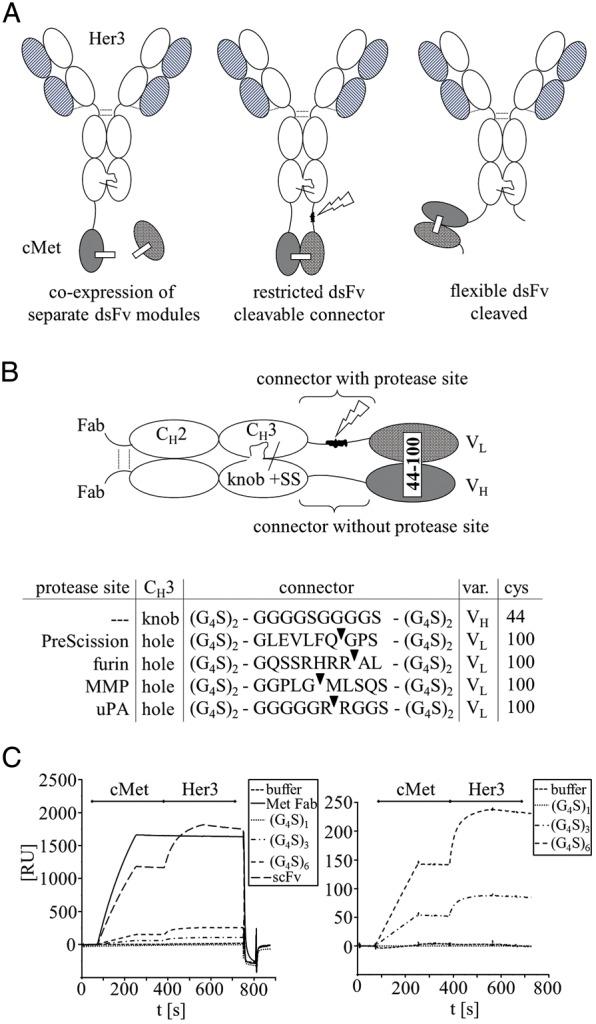

We have designed bispecific antibodies that bind one target (anti-Her3) in a bivalent IgG-like manner and contain one additional binding entity (anti-cMet) composed of one V(H) and one V(L) domain connected by a disulfide bond. The molecules are assembled by fusing a V(H,Cys44) domain via flexible connector peptides to the C-terminus of one H-chain (heavy chain), and a V(L,Cys100) to another H-chain. To ensure heterodimerization during expression in mammalian cells, we introduced complementary knobs-into-holes mutations into the different H-chains. The IgG-shaped trivalent molecules carry as third binding entity one disulfide-stabilized Fv (dsFv) without a linker between V(H) and V(L). Tethering the V(H) and V(L) domains at the C-terminus of the C(H)3 domain decreases the on-rates of the dsFv to target antigens without affecting off-rates. Steric hindrance resolves upon removal of one side of the double connection by proteolysis: this improves flexibility and accessibility of the dsFv and fully restores antigen access and affinity. This technology has multiple applications: (i) in cases where single-chain linkers are not desired, dsFvs without linkers can be generated by addition of furin site(s) in the connector that are processed during expression within mammalian cells; (ii) highly active (toxic) entities which affect expression can be produced as inactive dsFvs and subsequently be activated (e.g. via PreScission cleavage) during purification; (iii) entities can be generated which are targeted by the unrestricted binding entity and can be activated by proteases in target tissues. For example, Her3-binding molecules containing linkers with recognition sequences for matrix metalloproteases or urokinase, whose inactivated cMet binding site is activated by proteolytic processing.
我们设计了双特异性抗体,它们以二价 IgG 样的方式结合一个靶标(抗 Her3),并包含一个额外的结合实体(抗 cMet),由一个通过二硫键连接的 V(H)和一个 V(L)结构域组成。这些分子是通过将 V(H,Cys44)结构域通过柔性接头肽融合到一个 H 链(重链)的 C 末端,并将 V(L,Cys100)融合到另一个 H 链来组装的。为了确保在哺乳动物细胞中表达时的异二聚化,我们在不同的 H 链中引入了互补的“旋钮入孔”突变。IgG 形状的三价分子携带一个没有接头的二硫键稳定的 Fv(dsFv)作为第三个结合实体,位于 V(H)和 V(L)之间。将 V(H)和 V(L)结构域连接到 C(H)3 结构域的 C 末端,降低了 dsFv 与靶抗原的结合速度,而不影响解离速度。通过蛋白水解去除双连接体的一侧,可以解决空间位阻问题:这提高了 dsFv 的灵活性和可及性,并完全恢复了抗原的结合能力和亲和力。这项技术有多种应用:(i)在不希望使用单链接头的情况下,可以通过在接头中添加弗林蛋白酶切割位点来生成无接头的 dsFv,这些切割位点在哺乳动物细胞内表达时被加工;(ii)可以将影响表达的高活性(毒性)实体生成无活性的 dsFv,然后在纯化过程中通过 PreScission 切割激活;(iii)可以生成由不受限制的结合实体靶向的实体,并可以被靶组织中的蛋白酶激活。例如,含有基质金属蛋白酶或尿激酶识别序列的接头的 Her3 结合分子,其失活的 cMet 结合位点通过蛋白水解加工被激活。
