Department of Radiology, University of Ulsan College of Medicine, Asan Medical Center, Seoul 138-736, Korea.
Korean J Radiol. 2012 Sep-Oct;13(5):610-7. doi: 10.3348/kjr.2012.13.5.610. Epub 2012 Aug 28.
To investigate radiation doses in pediatric chest radiography in a national survey and to analyze the factors that affect radiation doses.
The study was based on the results of 149 chest radiography machines in 135 hospitals nationwide. For each machine, a chest radiograph was obtained by using a phantom representing a 5-year-old child (ATOM® dosimetry phantom, model 705-D, CIRS, Norfolk, VA, USA) with each hospital's own protocol. Five glass dosimeters (M-GD352M, Asahi Techno Glass Corporation, Shizuoka, Japan) were horizontally installed at the center of the phantom to measure the dose. Other factors including machine's radiography system, presence of dedicated pediatric radiography machine, presence of an attending pediatric radiologist, and the use of automatic exposure control (AEC) were also evaluated.

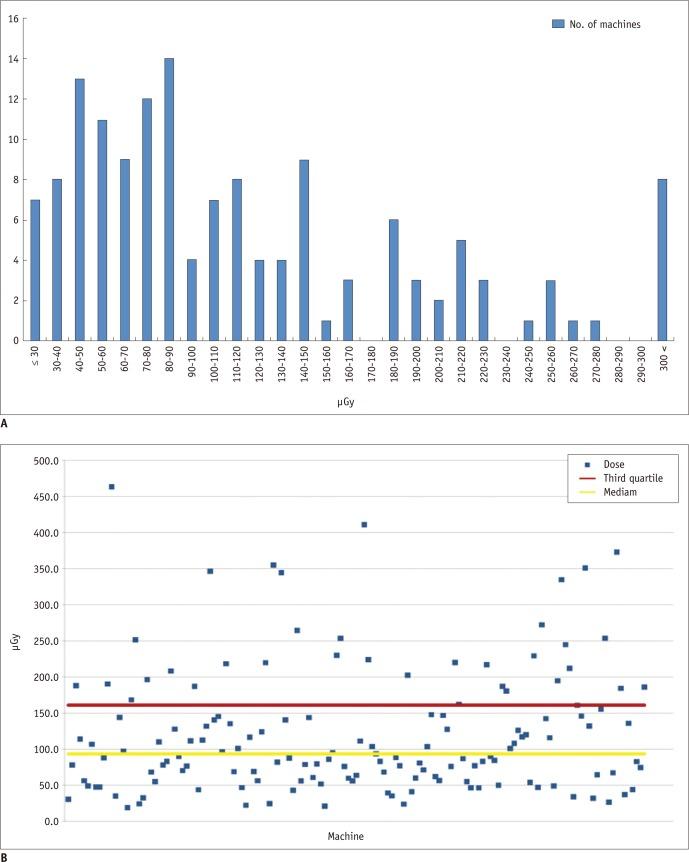

The average protocol for pediatric chest radiography examination in Korea was 94.9 peak kilovoltage and 4.30 milliampere second. The mean entrance surface dose (ESD) during a single examination was 140.4 microgray (µGy). The third quartile, median, minimum and maximum value of ESD were 160.8 µGy, 93.4 µGy, 18.8 µGy, and 2334.6 µGy, respectively. There was no significant dose difference between digital and non-digital radiography systems. The use of AEC significantly reduced radiation doses of pediatric chest radiographs (p < 0.001).
Our nationwide survey shows that the third quartile, median, and mean ESD for pediatric chest radiograph is 160.8 µGy, 93.4 µGy, and 140.4 µGy, respectively. No significant dose difference is noticed between digital and non-digital radiography systems, and the use of AEC helps significantly reduce radiation doses.
通过全国性调查研究,探讨儿科胸部 X 射线摄影的辐射剂量,并分析影响辐射剂量的因素。
本研究基于全国 135 家医院 149 台 X 射线机的研究结果。对于每台机器,均使用代表 5 岁儿童的体模(ATOM®剂量体模,型号 705-D,CIRS,美国弗吉尼亚州诺福克),按照各医院的自身方案获取胸部 X 射线照片。将五个玻璃剂量计(M-GD352M,Asahi Techno Glass Corporation,静冈,日本)水平安装在体模中心,以测量剂量。还评估了其他因素,包括机器的 X 射线摄影系统、是否有专用的儿科 X 射线机、是否有主治儿科放射科医生、以及是否使用自动曝光控制(AEC)。
韩国儿科胸部 X 射线摄影检查的平均方案为 94.9 兆峰千伏和 4.30 毫安秒。单次检查的平均皮肤入射剂量(ESD)为 140.4 微戈瑞(µGy)。ESD 的第三四分位数、中位数、最小值和最大值分别为 160.8 µGy、93.4 µGy、18.8 µGy 和 2334.6 µGy。数字和非数字 X 射线摄影系统之间的剂量差异无统计学意义。AEC 的使用显著降低了儿科胸部 X 射线摄影的辐射剂量(p < 0.001)。
我们的全国性调查显示,儿科胸部 X 射线摄影的 ESD 的第三四分位数、中位数和平均值分别为 160.8 µGy、93.4 µGy 和 140.4 µGy。数字和非数字 X 射线摄影系统之间的剂量差异无统计学意义,AEC 的使用有助于显著降低辐射剂量。
