Zhang Xiaonan, Zhao Xiuhua, Zu Yuangang, Chen Xiaoqiang, Lu Qi, Ma Yuliang, Yang Lei
State Engineering Laboratory for Bio-Resource Eco-Utilization, Northeast Forestry University, 150040 Harbin, China.
Int J Mol Sci. 2012 Oct 3;13(10):12598-607. doi: 10.3390/ijms131012598.

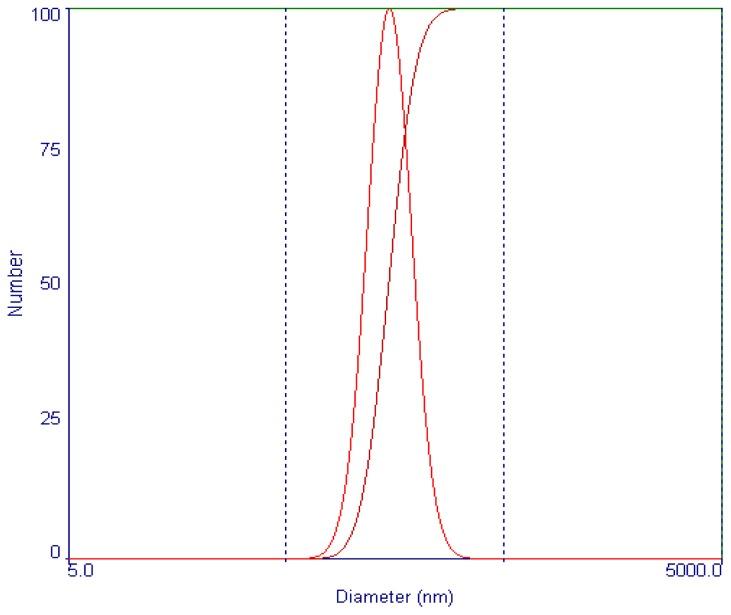

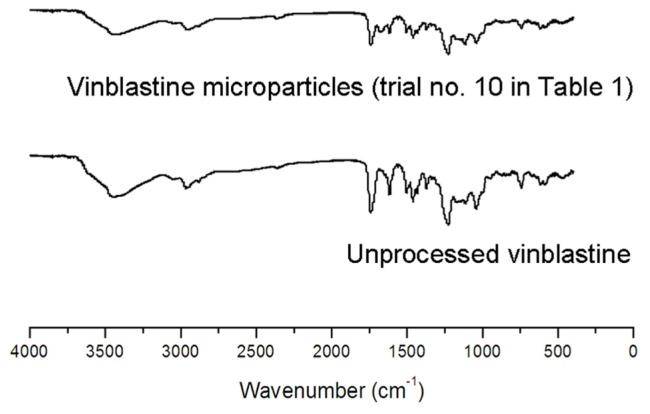

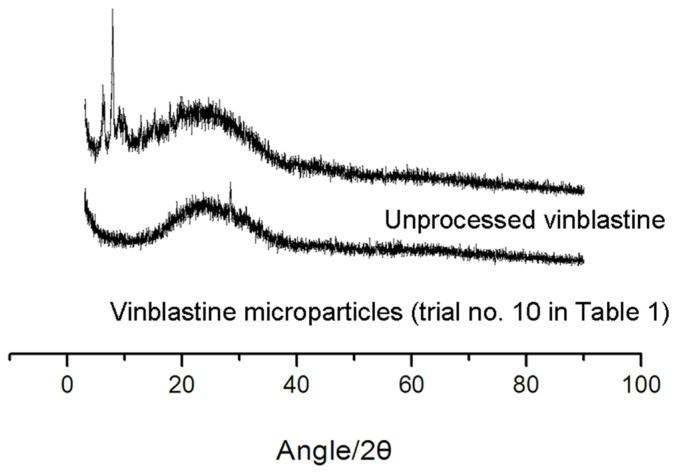

The objective of the study was to prepare vinblastine microparticles by supercritical antisolvent process using N-methyl-2-pyrrolidone as solvent and carbon dioxide as antisolvent and evaluate its physicochemical properties. The effects of four process variables, pressure, temperature, drug concentration and drug solution flow rate, on drug particle formation during the supercritical antisolvent process, were investigated. Particles with a mean particle size of 121 ± 5.3 nm were obtained under the optimized process conditions (precipitation temperature 60 °C, precipitation pressure 25 MPa, vinblastine concentration 2.50 mg/mL and vinblastine solution flow rate 6.7 mL/min). The vinblastine was characterized by scanning electron microscopy, X-ray diffraction, Fourier-transform infrared spectroscopy, mass spectrometry and dissolution test. It was concluded that physicochemical properties of crystalline vinblastine could be improved by physical modification, such as particle size reduction and generation of amorphous state using the supercritical antisolvent process. Furthermore, the supercritical antisolvent process was a powerful methodology for improving the physicochemical properties of vinblastine.
本研究的目的是采用超临界抗溶剂法,以N-甲基-2-吡咯烷酮为溶剂、二氧化碳为抗溶剂制备长春碱微粒,并评估其理化性质。研究了超临界抗溶剂过程中压力、温度、药物浓度和药物溶液流速这四个工艺变量对药物颗粒形成的影响。在优化工艺条件下(沉淀温度60℃、沉淀压力25MPa、长春碱浓度2.50mg/mL、长春碱溶液流速6.7mL/min)获得了平均粒径为121±5.3nm的颗粒。通过扫描电子显微镜、X射线衍射、傅里叶变换红外光谱、质谱和溶出度试验对长春碱进行了表征。得出结论:通过物理改性,如使用超临界抗溶剂法减小粒径并生成无定形状态,可以改善结晶长春碱的理化性质。此外,超临界抗溶剂法是改善长春碱理化性质的一种有效方法。
