使用超声通道数据的多光源光声层析成像(MIPAT)迭代算法。

Iterative algorithm for multiple illumination photoacoustic tomography (MIPAT) using ultrasound channel data.

作者信息

Shao Peng, Harrison Tyler, Zemp Roger J

机构信息

Department of Electrical and Computer Engineering, University of Alberta, ECERF 9107-116 St., NW, Edmonton, Alberta, T6G2V4, Canada.

出版信息

Biomed Opt Express. 2012 Dec 1;3(12):3240-9. doi: 10.1364/BOE.3.003240. Epub 2012 Nov 13.


DOI:10.1364/BOE.3.003240
PMID:23243574
原文链接:https://pmc.ncbi.nlm.nih.gov/articles/PMC3521303/
Abstract

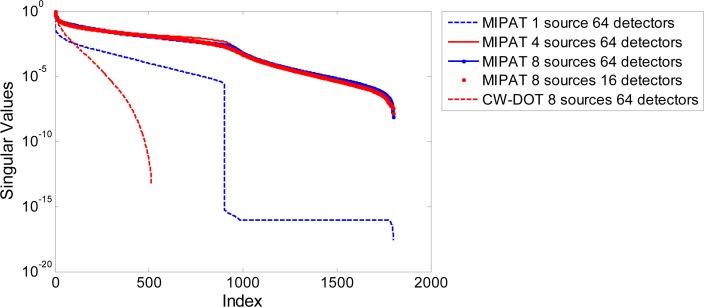

Photoacoustic tomography is a promising imaging modality offering high ultrasonic resolution with intrinsic optical contrast. However, quantification in photoacoustic imaging is challenging. We present an algorithm for quantitative photoacoustic estimation of optical absorption and diffusion coefficients based on minimizing an error function between measured photoacoustic channel data and a calculated forward model with a multiple-illumination pattern. Unlike many other algorithms, the proposed method does not require the erroneous assumption of ideal tomographic reconstruction of initial pressures and to our knowledge is the first demonstration of the efficacy of multiple-illumination photoacoustic tomography requiring only transducer channel data. Simulations show promise for numerically robust optical property estimation as illustrated by well-conditioned Hessian singular values in 2D examples.

摘要

光声断层扫描是一种很有前景的成像方式,它能提供具有内在光学对比度的高超声分辨率。然而,光声成像中的定量分析具有挑战性。我们提出了一种算法,用于基于最小化测量的光声通道数据与具有多重照明模式的计算正向模型之间的误差函数,对光吸收和扩散系数进行定量光声估计。与许多其他算法不同,该方法不需要对初始压力进行理想断层重建的错误假设,据我们所知,这是首次证明仅需要换能器通道数据的多重照明光声断层扫描的有效性。模拟显示了在数值上进行稳健光学特性估计的前景,二维示例中的良好条件数的海森矩阵奇异值说明了这一点。
