Department of Imaging and Interventional Radiology, The Chinese University of Hong Kong, Shatin, New Territories, Hong Kong, China ; Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences, Shenzhen, China.
Department of Imaging and Interventional Radiology, The Chinese University of Hong Kong, Shatin, New Territories, Hong Kong, China ; CUHK Shenzhen Research Institute, Shenzhen, China.
PLoS One. 2013 Dec 13;8(12):e81388. doi: 10.1371/journal.pone.0081388. eCollection 2013.

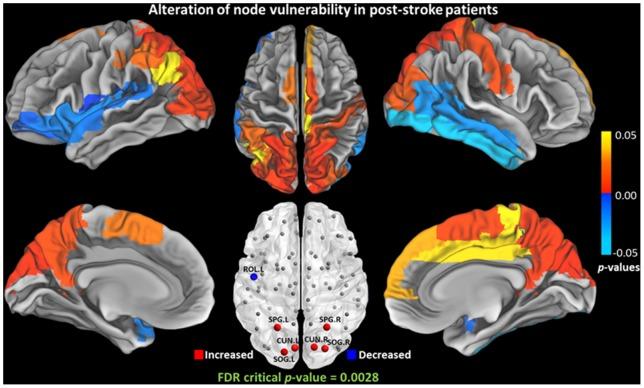

Structural changes after ischemic stroke could affect information communication extensively in the brain network. It is likely that the defects in the white matter (WM) network play a key role in information interchange. In this study, we used graph theoretical analysis to examine potential organization alteration in the WM network architecture derived from diffusion tensor images from subjects with no dementia and experienced stroke in the past 5.4-14.8 months (N = 47, Mini-Mental Screening Examination, MMSE range 18-30), compared with a normal control group with 44 age and gender-matched healthy volunteers (MMSE range 26-30). Region-wise connectivity was derived from fiber connection density of 90 different cortical and subcortical parcellations across the whole brain. Both normal controls and patients with chronic stroke exhibited efficient small-world properties in their WM structural networks. Compared with normal controls, topological efficiency was basically unaltered in the patients with chronic stroke, as reflected by unchanged local and global clustering coefficient, characteristic path length, and regional efficiency. No significant difference in hub distribution was found between normal control and patient groups. Patients with chronic stroke, however, were found to have reduced betweenness centrality and predominantly located in the orbitofrontal cortex, whereas increased betweenness centrality and vulnerability were observed in parietal-occipital cortex. The National Institutes of Health Stroke Scale (NIHSS) score of patient is correlated with the betweenness centrality of right pallidum and local clustering coefficient of left superior occipital gyrus. Our findings suggest that patients with chronic stroke still exhibit efficient small-world organization and unaltered topological efficiency, with altered topology at orbitofrontal cortex and parietal-occipital cortex in the overall structural network. Findings from this study could help in understanding the mechanism of cognitive impairment and functional compensation occurred in patients with chronic stroke.
脑缺血性卒中后的结构改变可能会广泛影响脑网络中的信息传递。很可能是白质(WM)网络的缺陷在信息交换中起关键作用。在这项研究中,我们使用图论分析来检查来自无痴呆且过去 5.4-14.8 个月(N=47,简易精神状态检查,MMSE 范围 18-30)经历过卒中的受试者和来自 44 名年龄和性别匹配的正常对照组(MMSE 范围 26-30)的扩散张量图像中 WM 网络结构的潜在组织改变。区域连接性源自整个大脑 90 个不同皮质和皮质下分区的纤维连接密度。正常对照组和慢性卒中患者的 WM 结构网络均表现出有效的小世界特性。与正常对照组相比,慢性卒中患者的拓扑效率基本保持不变,这反映在局部和全局聚类系数、特征路径长度和区域效率不变。在正常对照组和患者组之间未发现枢纽分布的显著差异。然而,慢性卒中患者的介数中心性降低,主要位于眶额皮质,而顶枕叶皮质的介数中心性增加且易受损。患者的 NIHSS 评分与右侧苍白球的介数中心性和左侧顶上回的局部聚类系数相关。我们的研究结果表明,慢性卒中患者仍表现出有效的小世界组织和不变的拓扑效率,在整体结构网络中眶额皮质和顶枕叶皮质的拓扑发生改变。本研究的结果有助于理解慢性卒中患者认知障碍和功能代偿发生的机制。
