一种半自动的单日图像差分技术,用于识别航空图像中的动物。

A semi-automated single day image differencing technique to identify animals in aerial imagery.

机构信息

Department of Wildland Resources, Utah State University, Logan, Utah, United States of America.

出版信息

PLoS One. 2014 Jan 14;9(1):e85239. doi: 10.1371/journal.pone.0085239. eCollection 2014.

Abstract

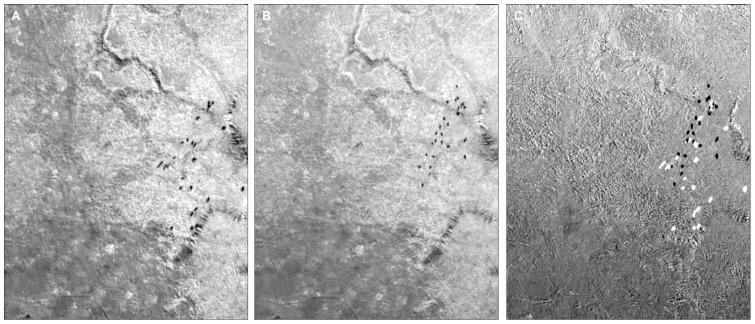

Our research presents a proof-of-concept that explores a new and innovative method to identify large animals in aerial imagery with single day image differencing. We acquired two aerial images of eight fenced pastures and conducted a principal component analysis of each image. We then subtracted the first principal component of the two pasture images followed by heuristic thresholding to generate polygons. The number of polygons represented the number of potential cattle (Bos taurus) and horses (Equus caballus) in the pasture. The process was considered semi-automated because we were not able to automate the identification of spatial or spectral thresholding values. Imagery was acquired concurrently with ground counts of animal numbers. Across the eight pastures, 82% of the animals were correctly identified, mean percent commission was 53%, and mean percent omission was 18%. The high commission error was due to small mis-alignments generated from image-to-image registration, misidentified shadows, and grouping behavior of animals. The high probability of correctly identifying animals suggests short time interval image differencing could provide a new technique to enumerate wild ungulates occupying grassland ecosystems, especially in isolated or difficult to access areas. To our knowledge, this was the first attempt to use standard change detection techniques to identify and enumerate large ungulates.

摘要

我们的研究提出了一个概念验证,探索了一种新的创新方法,通过单日图像差分来识别航空图像中的大型动物。我们获取了八个围栏牧场的两幅航空图像,并对每幅图像进行了主成分分析。然后,我们从两幅牧场图像的第一个主成分中减去,然后进行启发式阈值处理以生成多边形。多边形的数量代表了牧场上潜在的牛(Bos taurus)和马(Equus caballus)的数量。该过程被认为是半自动的,因为我们无法自动识别空间或光谱阈值值。图像是在对动物数量进行地面计数的同时获取的。在八个牧场中,82%的动物被正确识别,平均委员率为 53%,平均遗漏率为 18%。高委员错误率是由于图像到图像配准产生的小错位、误识别的阴影和动物的分组行为。高动物正确识别率表明,短时间间隔的图像差分可以提供一种新的技术来对占据草原生态系统的野生有蹄类动物进行计数,特别是在孤立或难以进入的地区。据我们所知,这是首次尝试使用标准的变化检测技术来识别和计数大型有蹄类动物。
