de Santos-Sierra Daniel, Sendiña-Nadal Irene, Leyva Inmaculada, Almendral Juan A, Anava Sarit, Ayali Amir, Papo David, Boccaletti Stefano
Center for Biomedical Technology, Universidad Politécnica de Madrid, Pozuelo de Alarcón, Madrid, Spain.
Complex Systems Group, Universidad Rey Juan Carlos, Móstoles, Madrid, Spain ; Center for Biomedical Technology, Universidad Politécnica de Madrid, Pozuelo de Alarcón, Madrid, Spain.
PLoS One. 2014 Jan 28;9(1):e85828. doi: 10.1371/journal.pone.0085828. eCollection 2014.

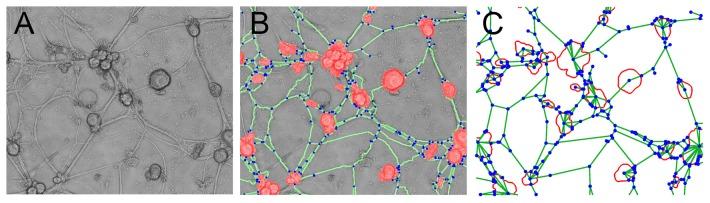

In vitro primary cultures of dissociated invertebrate neurons from locust ganglia are used to experimentally investigate the morphological evolution of assemblies of living neurons, as they self-organize from collections of separated cells into elaborated, clustered, networks. At all the different stages of the culture's development, identification of neurons' and neurites' location by means of a dedicated software allows to ultimately extract an adjacency matrix from each image of the culture. In turn, a systematic statistical analysis of a group of topological observables grants us the possibility of quantifying and tracking the progression of the main network's characteristics during the self-organization process of the culture. Our results point to the existence of a particular state corresponding to a small-world network configuration, in which several relevant graph's micro- and meso-scale properties emerge. Finally, we identify the main physical processes ruling the culture's morphological transformations, and embed them into a simplified growth model qualitatively reproducing the overall set of experimental observations.
从蝗虫神经节分离出的无脊椎动物神经元的体外原代培养,用于实验研究活神经元集合体的形态演化,因为它们从分离的细胞集合自组织成精细的、聚集的网络。在培养发展的所有不同阶段,通过专用软件识别神经元和神经突的位置,最终可以从培养的每个图像中提取邻接矩阵。反过来,对一组拓扑可观测量进行系统的统计分析,使我们有可能在培养的自组织过程中量化和跟踪主要网络特征的进展。我们的结果表明存在一种对应于小世界网络配置的特定状态,其中出现了几个相关图的微观和中观尺度属性。最后,我们确定了控制培养形态转变的主要物理过程,并将它们嵌入到一个简化的生长模型中,定性地再现了整个实验观察结果。
