由配体吸引形成双层包裹的上转换纳米颗粒的潜在毒性。

Potential toxicity of up-converting nanoparticles encapsulated with a bilayer formed by ligand attraction.

作者信息

Das Gautom K, Stark Daniel T, Kennedy Ian M

机构信息

Department of Mechanical and Aerospace Engineering, University of California , One Shields Avenue, Davis, California 95616, United States.

出版信息

Langmuir. 2014 Jul 15;30(27):8167-76. doi: 10.1021/la501595f. Epub 2014 Jul 3.

Abstract

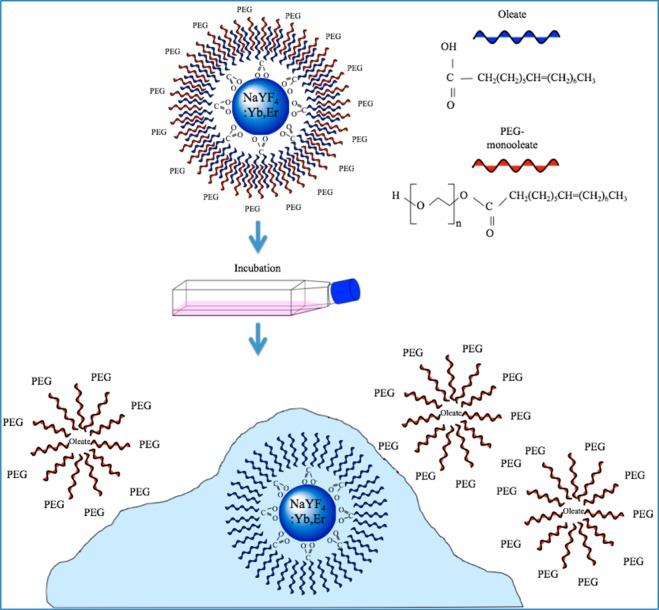

The cellular toxicity of nanoparticles that were capped with a bilayered ligand was studied using an up-converting (UC) phosphor material as a representative nanoparticle (NP). The results indicate that although UC NPs are known to be nontoxic, the toxicity of the NPs depends strongly on ligand coordination conditions, in addition to the other commonly known parameters such as size, structure, surface charge etc. Oleate-capped hydrophobic NaYF4:Yb,Er NPs were surface modified to yield three extreme conditions: bare particles that were stripped of the oleate ligands; particles with covalently bound poly(ethylene glycol) (PEG) ligands; and particles with an bilayer of PEG-oleate ligands using the oleate surface group that was remained after synthesis. It was found that the bare particles and the covalent PEG NPs induced little toxicity. However, particles that were rendered biocompatible by forming a bilayer with an amphiphilic ligand (i.e., PEG-oleate) resulted in significant cell toxicity. These findings strongly suggest that the PEG-oleate group dissociated from the bilayered oleate-capped NPs, resulting in significant toxicity by exposing the hydrophobic oleate-capped NPs to the cell. Based on results with bare particles, the NaLnF4:Yb,Er (Ln = Y, Gd) up-converting phosphors are essentially less-toxic. Capping and functionalizing these particles with ligand intercalation may, however, not be a suitable method for rendering the NPs suitable for bioapplication as the ligand can potentially dissociate upon cellular interaction, leading to significant toxicity.

摘要

使用上转换(UC)荧光粉材料作为代表性纳米颗粒(NP),研究了用双层配体包覆的纳米颗粒的细胞毒性。结果表明,尽管已知UC NPs无毒,但NP的毒性除了强烈依赖于诸如尺寸、结构、表面电荷等其他众所周知的参数外,还在很大程度上取决于配体配位条件。对油酸包覆的疏水性NaYF4:Yb,Er NPs进行表面改性,以产生三种极端情况:去除油酸配体的裸颗粒;具有共价结合聚乙二醇(PEG)配体的颗粒;以及使用合成后残留的油酸表面基团形成PEG-油酸双层配体的颗粒。结果发现,裸颗粒和共价PEG NPs几乎没有诱导毒性。然而,通过与两亲性配体(即PEG-油酸)形成双层而具有生物相容性的颗粒导致了显著的细胞毒性。这些发现强烈表明,PEG-油酸基团从双层油酸包覆的NP上解离,通过将疏水性油酸包覆的NP暴露于细胞而导致显著毒性。基于裸颗粒的结果,NaLnF4:Yb,Er(Ln = Y,Gd)上转换荧光粉本质上毒性较小。然而,用配体插层对这些颗粒进行包覆和功能化可能不是使NP适合生物应用的合适方法,因为配体在细胞相互作用时可能会解离,从而导致显著毒性。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/b733/4100795/a6b95482263e/la-2014-01595f_0002.jpg
