Routing of Physarum polycephalum "signals" using simple chemicals.

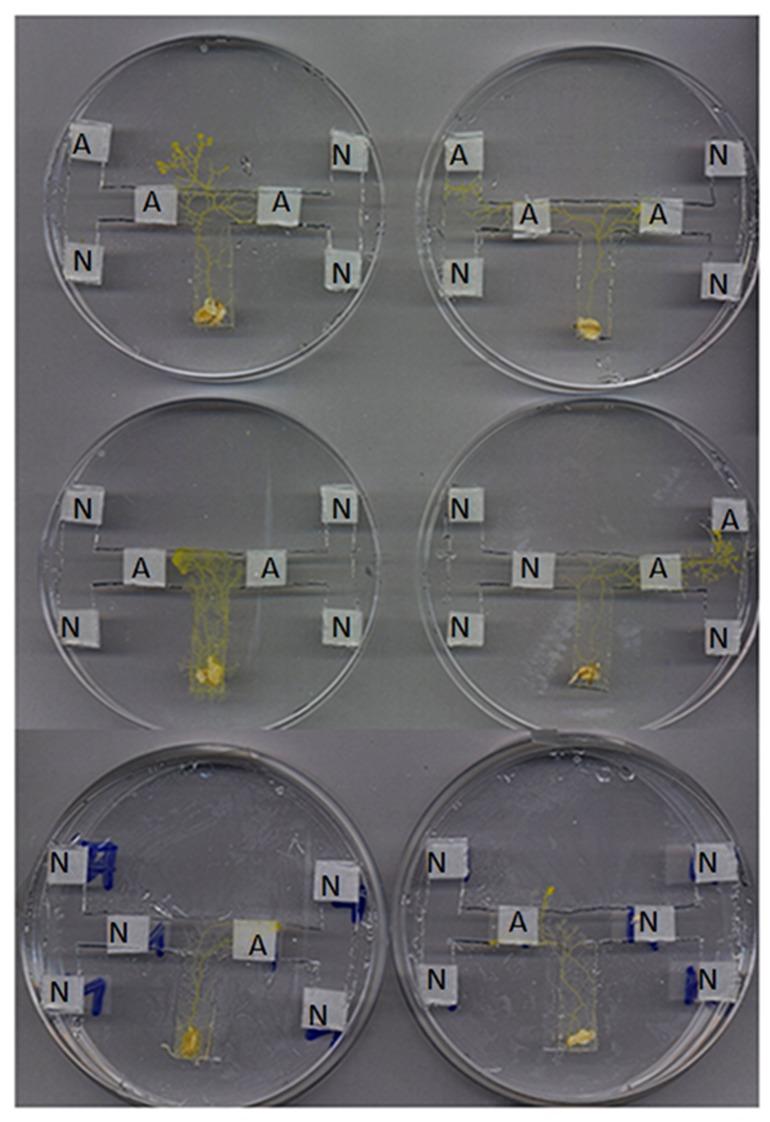

In previous work the chemotaxis toward simple organic chemicals was assessed. We utilize the knowledge gained from these chemotactic assays to route Physarum polycephalum "signals" at a series of junctions. By applying chemical inputs at a simple T-junction we were able to reproducibly control the path taken by the plasmodium of P. Polycephalum. Where the chemoattractant farnesene was used at one input a routed signal could be reproducibly generated i.e., P. Polycephalum moves toward the source of chemoattractant. Where the chemoattractant was applied at both inputs the signal was reproducibly split i.e., at the junction the plasmodium splits and moves toward both sources of chemoattractant. If a chemorepellent was used then the signal was reproducibly suppressed i.e., P. Polycephalum did not reach either output and was confined to the input channel. This was regardless of whether a chemoattractant was used in combination with the chemorepellent showing a hierarchy of inhibition over attraction. If no chemical input was used in the simple circuit then a random signal was generated, whereby P. Polycephalum would move toward one output at the junction, but the direction was randomly selected.
