Hare Hannah V, Blockley Nicholas P, Gardener Alexander G, Clare Stuart, Bulte Daniel P
FMRIB Centre, Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, UK.
FMRIB Centre, Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, UK.
Neuroimage. 2015 May 15;112:189-196. doi: 10.1016/j.neuroimage.2015.02.068. Epub 2015 Mar 14.

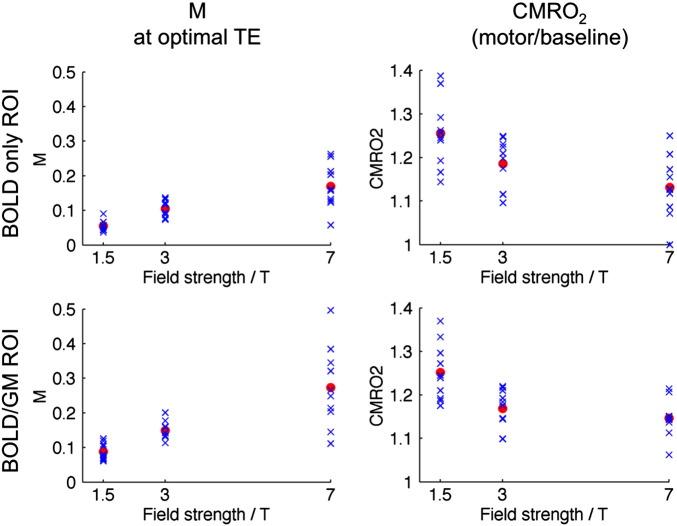

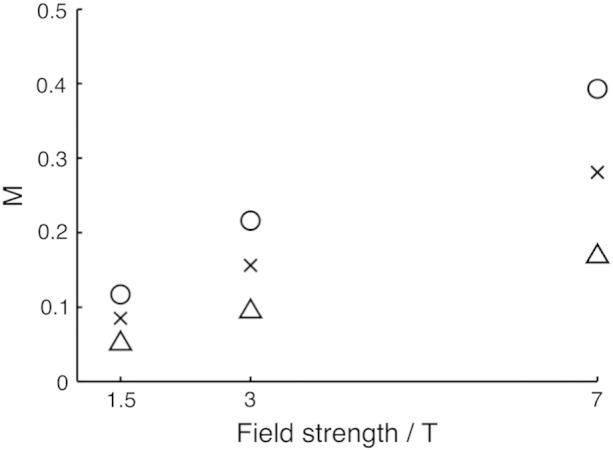

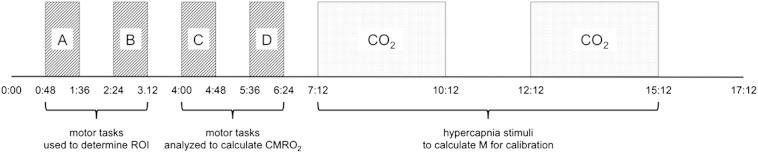

Gas calibrated fMRI in its most common form uses hypercapnia in conjunction with the Davis model to quantify relative changes in the cerebral rate of oxygen consumption (CMRO2) in response to a functional stimulus. It is most commonly carried out at 3T but, as 7T research scanners are becoming more widespread and the majority of clinical scanners are still 1.5T systems, it is important to investigate whether the model used remains accurate across this range of field strengths. Ten subjects were scanned at 1.5, 3 and 7T whilst performing a bilateral finger-tapping task as part of a calibrated fMRI protocol, and the results were compared to a detailed signal model. Simulations predicted an increase in value and variation in the calibration parameter M with field strength. Two methods of defining experimental regions of interest (ROIs) were investigated, based on (a) BOLD signal and (b) BOLD responses within grey matter only. M values from the latter ROI were in closer agreement with theoretical predictions; however, reassuringly, ROI choice had less impact on CMRO2 than on M estimates. Relative changes in CMRO2 during motor tasks at 3 and 7T were in good agreement but were over-estimated at 1.5T as a result of the lower signal to noise ratio. This result is encouraging for future studies at 7T, but also highlights the impact of imaging and analysis choices (such as ASL sequence and ROI definition) on the calibration parameter M and on the calculation of CMRO2.
最常见形式的气体校准功能磁共振成像(fMRI)结合高碳酸血症和戴维斯模型,以量化大脑氧消耗率(CMRO2)对功能刺激的相对变化。它最常在3T下进行,但随着7T研究扫描仪越来越普及,而大多数临床扫描仪仍是1.5T系统,研究在这个磁场强度范围内所使用的模型是否仍准确就很重要。十名受试者在1.5T、3T和7T下进行扫描,同时执行双侧手指敲击任务,作为校准fMRI协议的一部分,并将结果与详细的信号模型进行比较。模拟预测校准参数M的值会随着磁场强度增加以及出现变化。研究了两种定义感兴趣实验区域(ROI)的方法,分别基于(a)血氧水平依赖(BOLD)信号和(b)仅灰质内的BOLD反应。后一种ROI的M值与理论预测更一致;然而,令人放心的是,ROI选择对CMRO2的影响比对M估计值的影响小。3T和7T运动任务期间CMRO2的相对变化吻合良好,但由于信噪比更低,在1.5T时被高估。这一结果对未来7T的研究令人鼓舞,但也突出了成像和分析选择(如动脉自旋标记序列和ROI定义)对校准参数M以及CMRO2计算的影响。
