Gehrmann Mathias K, Kimm Melanie A, Stangl Stefan, Schmid Thomas E, Noël Peter B, Rummeny Ernst J, Multhoff Gabriele
Department of Radiation Oncology, Klinikum rechts der Isar, Technische Universität München, Munich, Germany.
Department of Diagnostic and Interventional Radiology, Klinikum rechts der Isar, Technische Universität München, Munich, Germany.
Int J Nanomedicine. 2015 Sep 8;10:5687-700. doi: 10.2147/IJN.S87174. eCollection 2015.

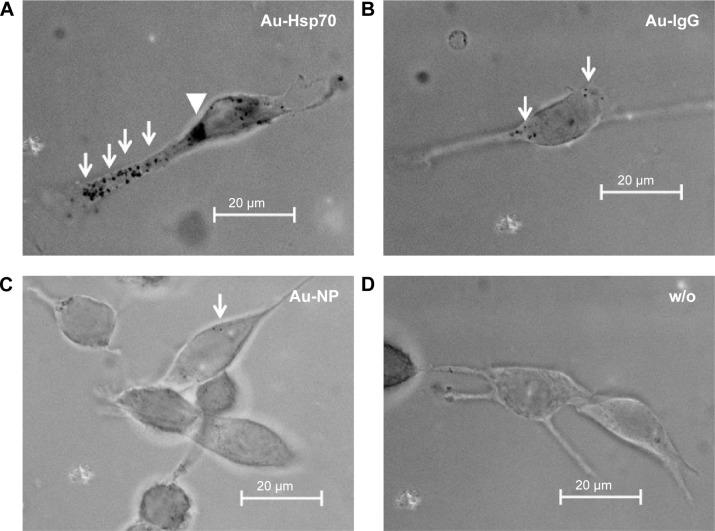

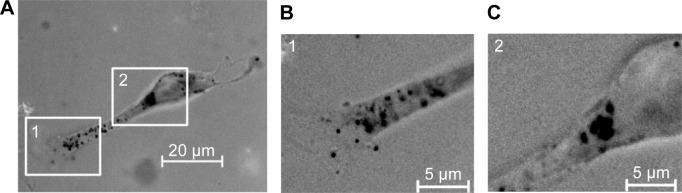

Real-time imaging of small tumors is still one of the challenges in cancer diagnosis, prognosis, and monitoring of clinical outcome. Targeting novel biomarkers that are selectively expressed on a large variety of different tumors but not normal cells has the potential to improve the imaging capacity of existing methods such as computed tomography. Herein, we present a novel technique using cmHsp70.1 monoclonal antibody-conjugated spherical gold nanoparticles for quantification of the targeted uptake of gold nanoparticles into membrane Hsp70-positive tumor cells. Upon binding, cmHsp70.1-conjugated gold nanoparticles but not nanoparticles coupled to an isotype-matched IgG1 antibody or empty nanoparticles are rapidly taken up by highly malignant Hsp70 membrane-positive mouse tumor cells. After 24 hours, the cmHsp70.1-conjugated gold nanoparticles are found to be enriched in the perinuclear region. Specificity for membrane Hsp70 was shown by using an Hsp70 knockout tumor cell system. Toxic side effects of the cmHsp70.1-conjugated nanoparticles are not observed at a concentration of 1-10 µg/mL. Experiments are ongoing to evaluate whether cmHsp70.1 antibody-conjugated gold nanoparticles are suitable for the detection of membrane-Hsp70-positive tumors in vivo.
小肿瘤的实时成像仍然是癌症诊断、预后评估及临床疗效监测中的挑战之一。靶向多种不同肿瘤而非正常细胞上选择性表达的新型生物标志物,有可能提高诸如计算机断层扫描等现有方法的成像能力。在此,我们提出一种新技术,即使用与cmHsp70.1单克隆抗体偶联的球形金纳米颗粒,来定量金纳米颗粒靶向摄取到膜Hsp70阳性肿瘤细胞中的情况。结合后,与cmHsp70.1偶联的金纳米颗粒而非与同型匹配的IgG1抗体偶联的纳米颗粒或空纳米颗粒,会被高度恶性的Hsp70膜阳性小鼠肿瘤细胞迅速摄取。24小时后,发现与cmHsp70.1偶联的金纳米颗粒富集于核周区域。通过使用Hsp70基因敲除肿瘤细胞系统,证明了对膜Hsp70的特异性。在1-10μg/mL的浓度下未观察到与cmHsp70.1偶联的纳米颗粒的毒性副作用。正在进行实验以评估与cmHsp70.1抗体偶联的金纳米颗粒是否适用于体内检测膜Hsp70阳性肿瘤。
