Surface functionality and electrochemical investigations of a graphitic electrode as a candidate for alkaline energy conversion and storage devices.

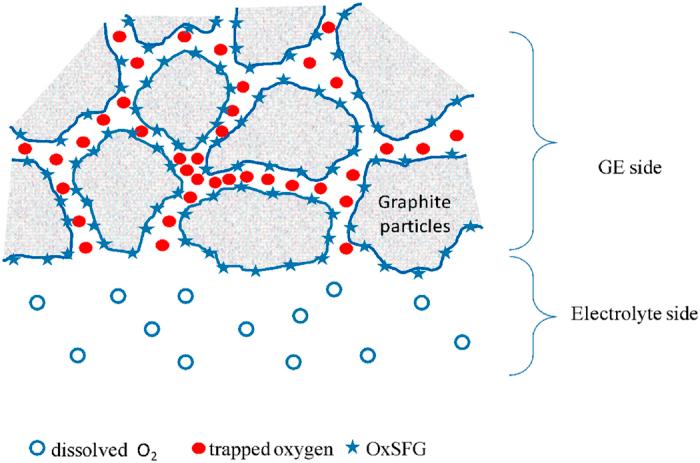

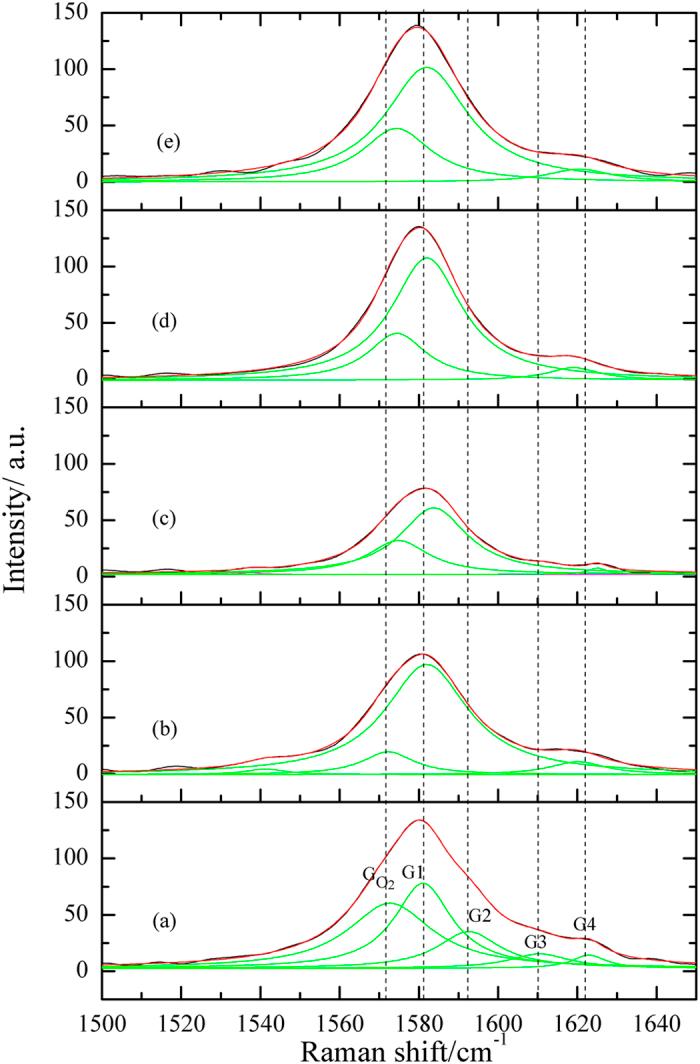

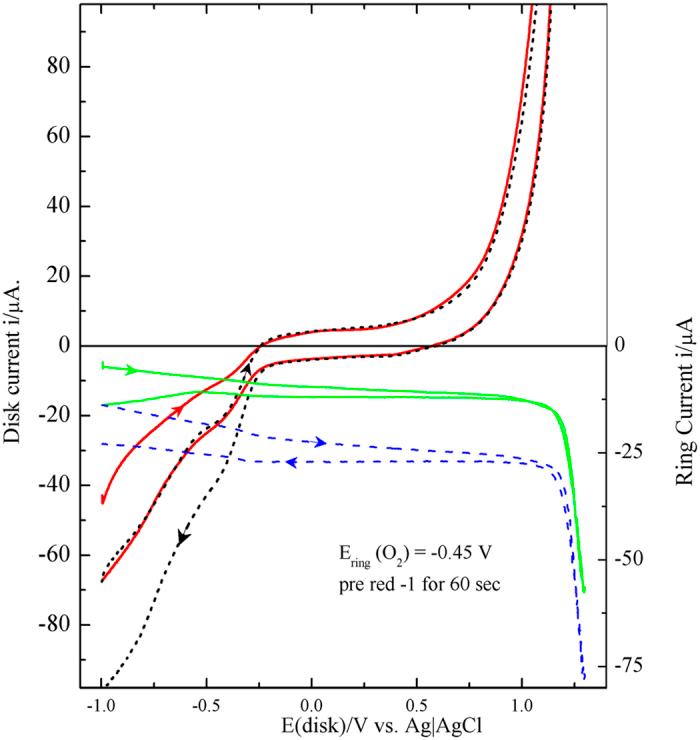

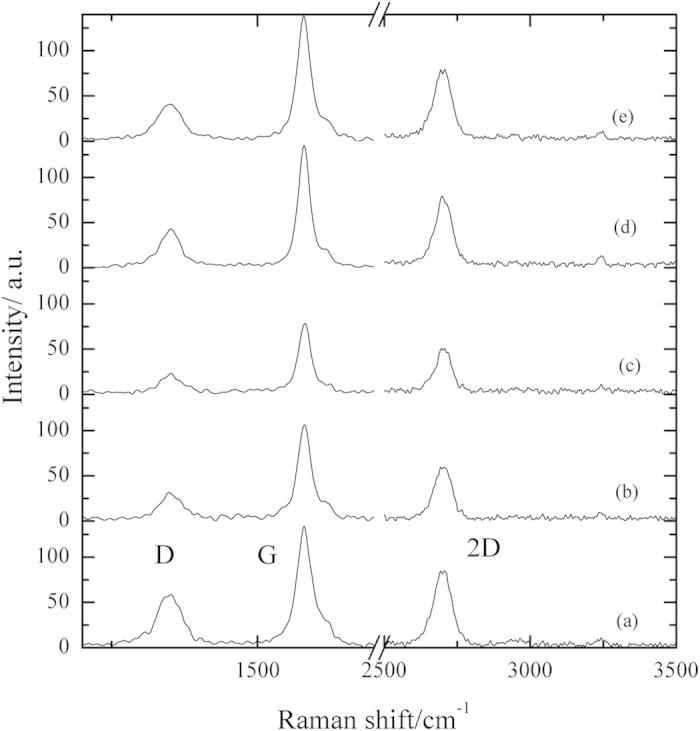

Graphite is a typical electrocatalyst support in alkaline energy conversion and storage devices such as fuel cells, supercapacitores and lithium ion batteries. The electrochemical behaviour of a graphite electrode in 0.5 M NaOH was studied to elucidate its surface structure/electrochemical activity relationship. Graphite voltammograms are characterized by an anodic shoulder AI and a cathodic peak CI in addition to the oxygen reduction reaction plateaus, PI and PII. AI and CI were attributed to oxidation and reduction of some graphite surface function groups, respectively. Rotating ring disk electrode (RRDE) study revealed two different oxygen types assigned as inner and outer oxygen. The inner oxygen was reduced via the more efficient 4-electron pathway. The outer oxygen reduction proceeded with a lower efficient 2-electron pathway. The calculated percentages of the 4-electron pathway were ranged from 70% to 90%. A full mechanism for the graphite surface function groups changes over the studied potential window was suggested through the combination between the voltammetric, FT-IR and Raman results.
