Incident Angle- and Polarization-Insensitive Metamaterial Absorber using Circular Sectors.

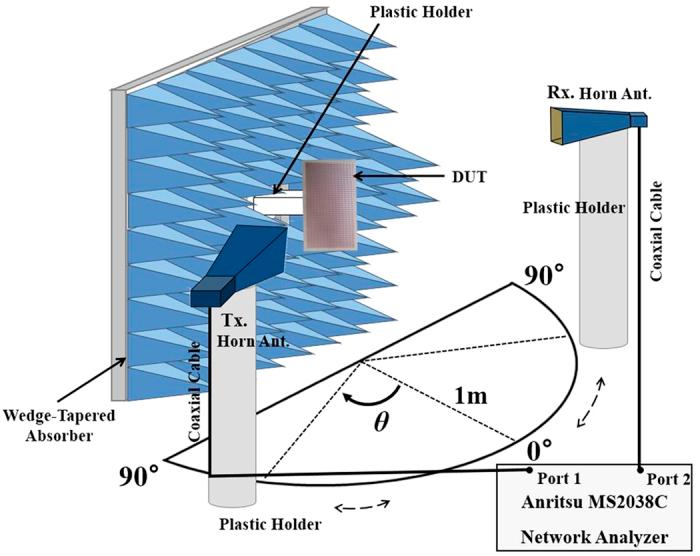

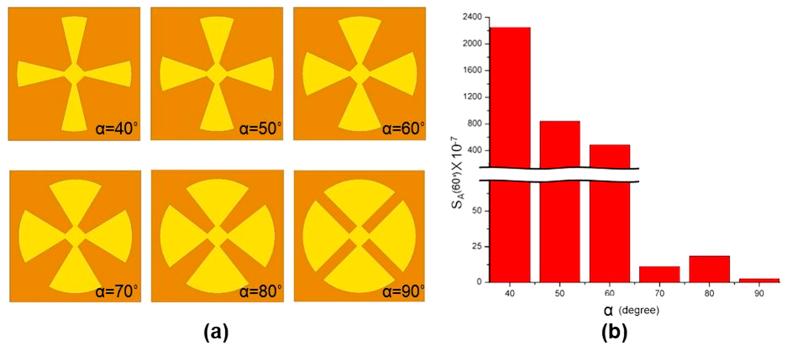

In this paper, an incident angle- and polarization-insensitive metamaterial absorber is proposed for X-band applications. A unit cell of the proposed absorber has a square patch at the centre and four circular sectors are rotated around the square patch. The vertically and horizontally symmetric structure of the unit cell enables polarization-insensitivity. The circular sector of the unit cell enables an angle-insensitivity. The performances of the proposed absorber are demonstrated with a full-wave simulation and measurements. The angular sensitivity is studied at different inner angles of the circular sector. When the inner angle of the circular sector is 90°, the simulated absorptivity is higher than 90%, and the frequency variation is less than 0.96% for incident angles up to 70°. The measured absorptivity at 10.44 GHz is close to 100% for all the polarization angles under normal incidence. When the incident angles are varied from 0°- 60°, the measured absorptivity is maintained above 90% for both the transverse electric (TE) and the transverse magnetic (TM) modes.
