基于 PiggyBac 转座子的聚腺苷酸化信号捕获技术用于小鼠全基因组诱变

PiggyBac transposon-based polyadenylation-signal trap for genome-wide mutagenesis in mice.

作者信息

Li Limei, Liu Peng, Sun Liangliang, Fei Jian

机构信息

Research Center for Translational Medicine, Shanghai East Hospital, Tongji University School of Medicine, Shanghai 200120, China.

Department of vascular surgery, Shanghai East Hospital, Tongji University School of Medicine, Shanghai 200120, China.

出版信息

Sci Rep. 2016 Jun 13;6:27788. doi: 10.1038/srep27788.

Abstract

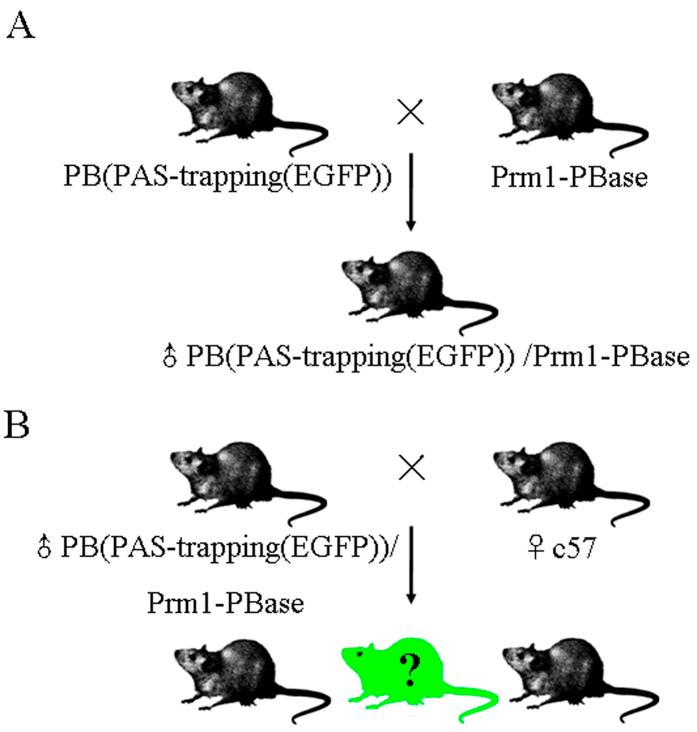

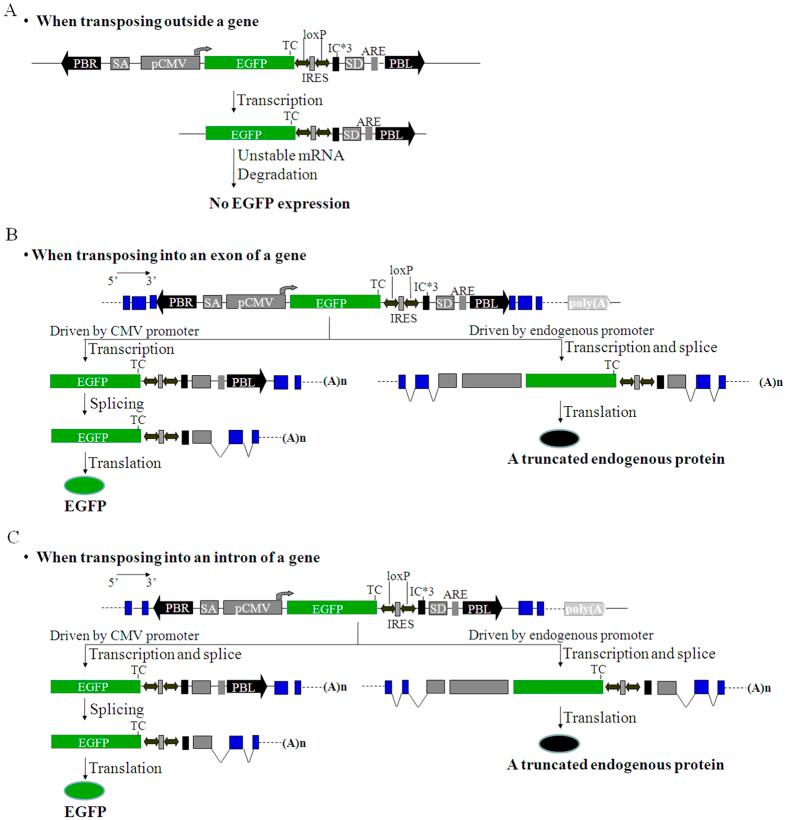

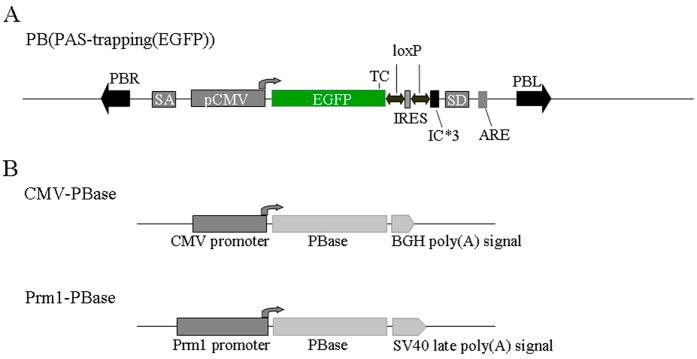

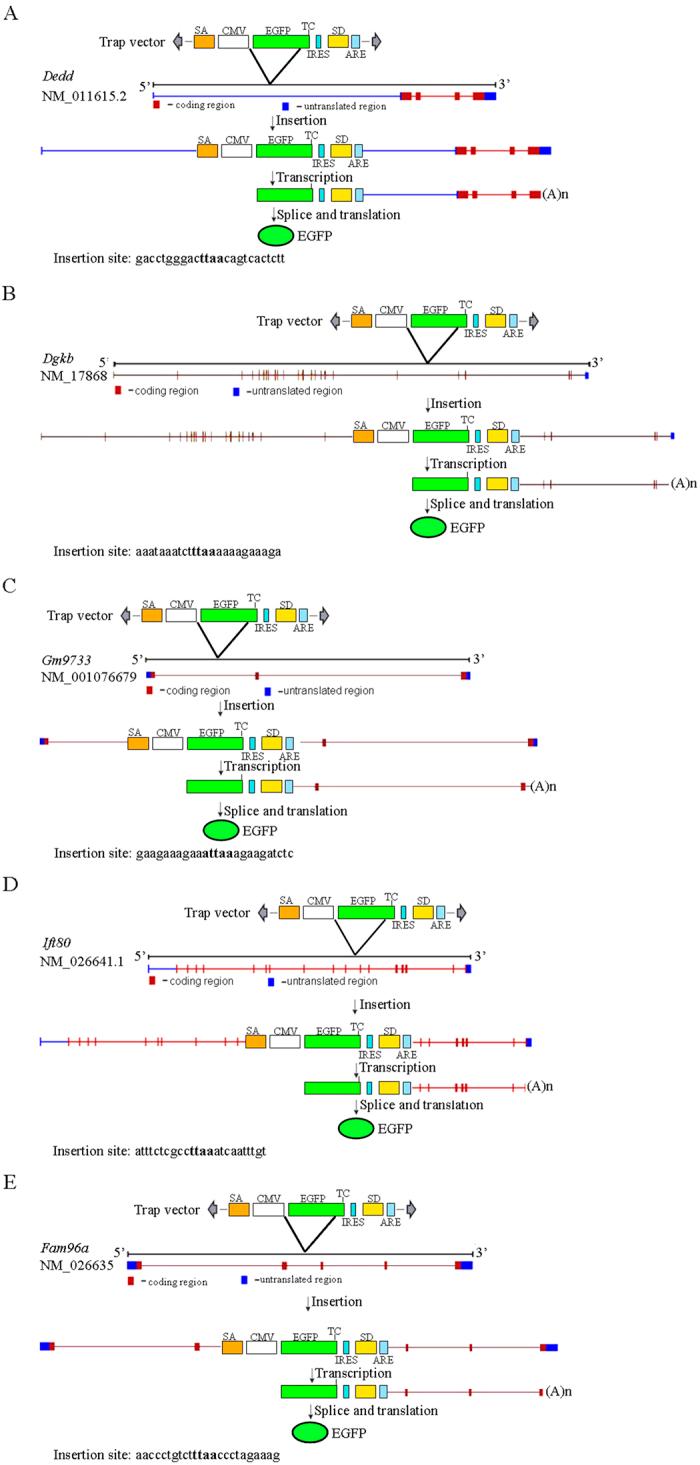

We designed a new type of polyadenylation-signal (PAS) trap vector system in living mice, the piggyBac (PB) (PAS-trapping (EGFP)) gene trapping vector, which takes advantage of the efficient transposition ability of PB and efficient gene trap and insertional mutagenesis of PAS-trapping. The reporter gene of PB(PAS-trapping (EGFP)) is an EGFP gene with its own promoter, but lacking a poly(A) signal. Transgenic mouse lines carrying PB(PAS-trapping (EGFP)) and protamine 1 (Prm1) promoter-driven PB transposase transgenes (Prm1-PBase) were generated by microinjection. Male mice doubly positive for PB(PAS-trapping (EGFP)) and Prm1-PBase were crossed with WT females, generating offspring with various insertion mutations. We found that 44.8% (26/58) of pups were transposon-positive progenies. New transposon integrations comprised 26.9% (7/26) of the transposon-positive progenies. We found that 100% (5/5) of the EGFP fluorescence-positive mice had new trap insertions mediated by a PB transposon in transcriptional units. The direction of the EGFP gene in the vector was consistent with the direction of the endogenous gene reading frame. Furthermore, mice that were EGFP-PCR positive, but EGFP fluorescent negative, did not show successful gene trapping. Thus, the novel PB(PAS-trapping (EGFP)) system is an efficient genome-wide gene-trap mutagenesis in mice.

摘要

我们在活体小鼠中设计了一种新型的聚腺苷酸化信号(PAS)捕获载体系统,即猪尾巴(PB)(PAS捕获(增强绿色荧光蛋白(EGFP)))基因捕获载体,它利用了PB高效的转座能力以及PAS捕获高效的基因捕获和插入诱变作用。PB(PAS捕获(EGFP))的报告基因是一个带有自身启动子但缺乏聚腺苷酸信号的EGFP基因。通过显微注射产生了携带PB(PAS捕获(EGFP))和鱼精蛋白1(Prm1)启动子驱动的PB转座酶转基因(Prm1-PBase)的转基因小鼠品系。将PB(PAS捕获(EGFP))和Prm1-PBase双阳性的雄性小鼠与野生型雌性小鼠杂交,产生具有各种插入突变的后代。我们发现44.8%(26/58)的幼崽是转座子阳性后代。新的转座子整合占转座子阳性后代的26.9%(7/26)。我们发现100%(5/5)的EGFP荧光阳性小鼠在转录单元中有由PB转座子介导的新的捕获插入。载体中EGFP基因的方向与内源基因阅读框的方向一致。此外,EGFP-PCR阳性但EGFP荧光阴性的小鼠没有显示出成功的基因捕获。因此,新型的PB(PAS捕获(EGFP))系统是一种在小鼠中进行全基因组范围基因捕获诱变的有效方法。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/cb97/4904408/79ca40bb2d03/srep27788-f1.jpg
