Intrinsic Capacitances and Inductances of Quantum Hall Effect Devices.

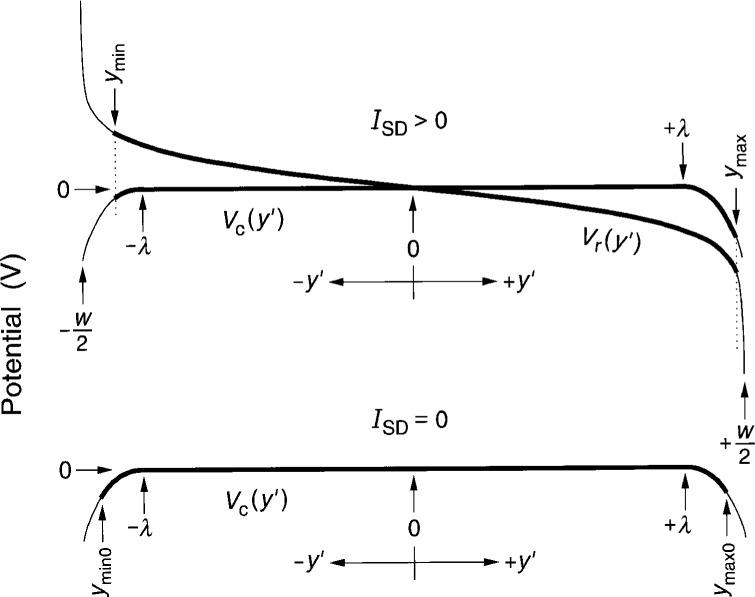

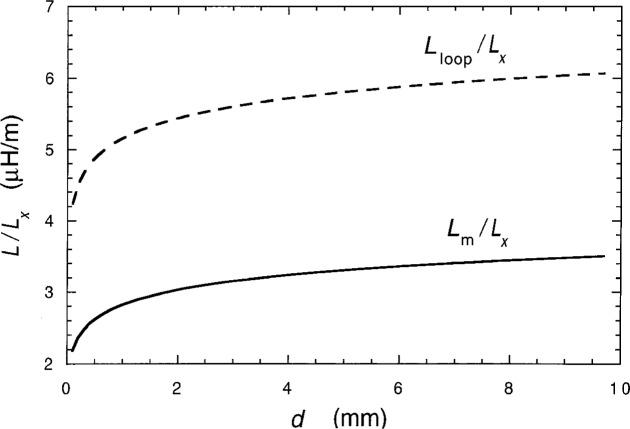

Analytic solutions are obtained for the internal capacitances, kinetic inductances, and magnetic inductances of quantum Hall effect devices to investigate whether or not the quantized Hall resistance is the only intrinsic impedance of importance in measurements of the ac quantum Hall effect. The internal capacitances and inductances are obtained by using the results of Cage and Lavine, who determined the current and potential distributions across the widths of quantum Hall effect devices. These intrinsic capacitances and inductances produce small out-of-phase impedance corrections to the in-phase quantized Hall resistance and to the in-phase longitudinal resistance.
