用于高探测率应用的具有超低暗电流的长期稳定有机光电探测器。

Long-Term Stable Organic Photodetectors with Ultra Low Dark Currents for High Detectivity Applications.

机构信息

University of Bordeaux, IMS, UMR 5218, F-33400 Talence, France and CNRS, IMS, UMR 5218, F-33400 Talence, France.

ISORG, 60 Rue des berges, Parc Polytec, Immeuble Tramontane, 38000 Grenoble, France.

出版信息

Sci Rep. 2016 Dec 22;6:39201. doi: 10.1038/srep39201.

Abstract

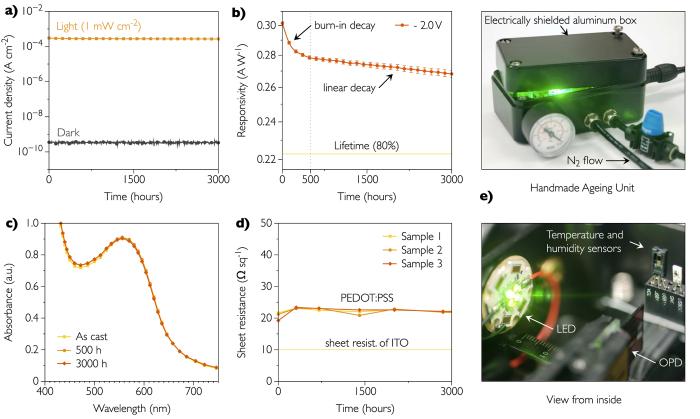

Printed organic photodetectors can transform plastic, paper or glass into smart surfaces. This innovative technology is now growing exponentially due to the strong demand in human-machine interfaces. To date, only niche markets are targeted since organic sensors still present reduced performances in comparison with their inorganic counterparts. Here we demonstrate that it is possible to engineer a state-of-the-art organic photodetector approaching the performances of Si-based photodiodes in terms of dark current, responsivity and detectivity. Only three solution-processed layers and two low-temperature annealing steps are needed to achieve the performance that is significantly better than most of the organic photodetectors reported so far. We also perform a long-term ageing study. Lifetimes of over 14,000 hours under continuous operation are more than promising and demonstrate that organic photodetectors can reach a competitive level of stability for successful commercialization of this new and promising technology.

摘要

印刷有机光电探测器可以将塑料、纸张或玻璃转化为智能表面。由于对人机界面的强烈需求,这项创新技术正在呈指数级增长。到目前为止,由于有机传感器的性能仍然低于无机传感器,因此只针对利基市场。在这里,我们证明了通过工程设计,可以制造出一种最先进的有机光电探测器,其暗电流、响应率和探测率方面可与基于硅的光电二极管相媲美。仅需要三层溶液处理层和两次低温退火步骤,就可以实现比迄今为止报道的大多数有机光电探测器性能显著更好的性能。我们还进行了长期老化研究。在连续运行下超过 14000 小时的寿命非常有希望,这表明有机光电探测器可以达到稳定的竞争水平,从而成功实现这项新的有前途的技术的商业化。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/1e19/5177896/dedeccd40465/srep39201-f1.jpg
