International Center for Materials Nanoarchitectonics (MANA), National Institute for Materials Science (NIMS), 1-1 Namiki, Tsukuba, Ibaraki 305-0044, Japan.
CREST, Japan Science and Technology Agency, 4-1-8 Honcho, Kawaguchi, Saitama, 332-0012, Japan.
Sci Rep. 2017 Mar 8;7:44069. doi: 10.1038/srep44069.

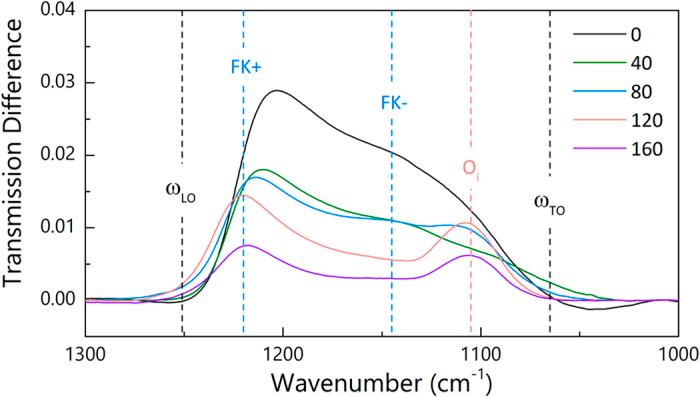

We fabricated large-area metallic (Al and Au) nanoantenna arrays on Si substrates using cost-effective colloidal lithography with different micrometer-sized polystyrene spheres. Variation of the sphere size leads to tunable plasmon resonances in the middle infrared (MIR) range. The enhanced near-fields allow us to detect the surface phonon polaritons in the natural SiO thin layers. We demonstrated further tuning capability of the resonances by employing dry etching of the Si substrates with the nanoantennas acting as the etching masks. The effective refractive index of the nanoantenna surroundings is efficiently decreased giving rise to blueshifts of the resonances. In addition, partial removal of the Si substrates elevates the nanoantennas from the high-refractive-index substrates making more enhanced near-fields accessible for molecular sensing applications as demonstrated here with surface-enhanced infrared absorption (SEIRA) spectroscopy for a thin polymer film. We also directly compared the plasmonic enhancement from the Al and Au nanoantenna arrays.
我们使用具有不同尺寸微米级聚苯乙烯球的成本效益胶体光刻法在 Si 衬底上制造了大面积金属(Al 和 Au)纳米天线阵列。球的尺寸变化导致中红外(MIR)范围内可调谐的等离子体共振。增强的近场允许我们检测天然 SiO 薄膜中的表面声子极化激元。我们通过使用纳米天线作为蚀刻掩模的 Si 衬底的干法蚀刻进一步展示了共振的调谐能力。纳米天线周围的有效折射率有效地降低,导致共振的蓝移。此外,部分去除 Si 衬底使纳米天线从高折射率衬底中升高,从而为分子传感应用提供了更多增强的近场,如这里通过表面增强红外吸收(SEIRA)光谱对薄聚合物膜进行的演示。我们还直接比较了 Al 和 Au 纳米天线阵列的等离子体增强。
