Department of Vascular Surgery, School of Medicine, Shanghai Ninth People's Hospital, Shanghai JiaoTong University, Shanghai, China.
Vascular Center of Shanghai JiaoTong University, Shanghai, China.
J Am Heart Assoc. 2017 Apr 21;6(4):e004542. doi: 10.1161/JAHA.116.004542.
Reconstruction of the aortic major branches during thoracic endovascular aortic repair is complicated because of the complex anatomic configuration and variation of the aortic arch. In situ laser fenestration has shown great potential for the revascularization of aortic branches. This study aims to evaluate the feasibility, effectiveness, and safety of in situ laser fenestration on the three branches of the aortic arch during thoracic endovascular aortic repair.

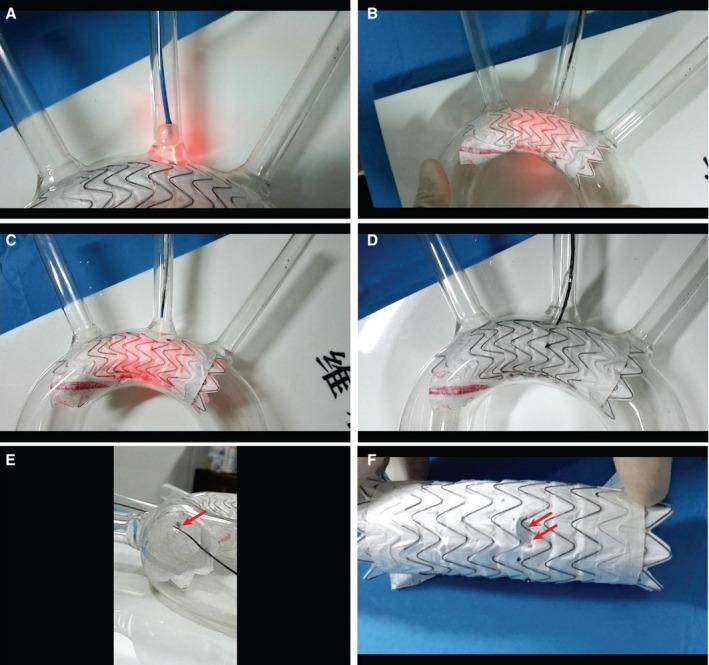

Before clinical application, the polytetrafluoroethylene and Dacron grafts were fenestrated by an 810-nm laser system ex vivo, which did not damage the bare metal portion of the endografts and created a clean fenestration while maintaining the integrity of the endografts. In vivo 6 anesthetized female swine survived after this operation, including stent-graft implantation in the aortic arches, laser fenestration, and conduit implantation through the innominate arteries and the left carotid arteries. Based on the animal experiments, in situ laser fenestration during thoracic endovascular aortic repair was successively performed on 24 patients (aged 33-86 years) with aortic artery diseases (dissection type A: n=4, type B: n=7, aneurysm: n=2, mural thrombus: n=7). Fenestration of 3 aortic branches was performed in 2 (8.3%) patients. Both the left carotid artery and the left subclavian artery were fenestrated in 6 (25%) patients. Only left subclavian artery fenestration surgery was done in 16 (66.7%) patients. Among these patients, 1 fenestration was abandoned secondary to an acute takeoff of the innominate artery in a type III aortic arch. The average operative time was 137±15 minutes. The technical success rate was 95.8% (n=23). No fenestration-related complications or neurological morbidity occurred after this operation. During a mean postoperative 10-month follow-up (range: 2-17 months), 1 patient died of severe pneumonia, and all the left subclavian artery and carotid artery stents were patent with no fenestration-related endoleaks upon computed tomography angiography images.
In situ laser fenestration is a feasible, effective, rapid, repeatable, and safe option for the reconstruction of aortic arch during thoracic endovascular aortic repair, which might be available to revascularize the 3 branches. However, follow-up periods should be extended to evaluate the robustness of this technique.
由于主动脉弓复杂的解剖结构和变异,在胸主动脉腔内修复术中重建主动脉主要分支较为复杂。原位激光开窗在主动脉分支血运重建方面显示出巨大潜力。本研究旨在评估在胸主动脉腔内修复术中对主动脉弓三支血管进行原位激光开窗的可行性、有效性和安全性。
在临床应用之前,通过 810nm 激光系统对聚四氟乙烯和涤纶移植物进行了开窗,这不会损伤移植物的裸金属部分,并在保持移植物完整性的同时,创建了一个干净的开窗。6 只麻醉后的雌性猪在手术后存活下来,包括主动脉弓内支架植入、激光开窗和通过无名动脉和左颈总动脉植入导管。基于动物实验,对 24 例主动脉疾病患者(A型夹层 n=4,B 型夹层 n=7,动脉瘤 n=2,壁血栓 n=7)进行了胸主动脉腔内修复术中的原位激光开窗。2 例(8.3%)患者进行了 3 个主动脉分支的开窗。6 例(25%)患者同时进行了左颈总动脉和左锁骨下动脉开窗。16 例(66.7%)患者仅进行了左锁骨下动脉开窗手术。其中 1 例因 III 型主动脉弓无名动脉急性起始而放弃开窗。手术平均时间为 137±15 分钟。技术成功率为 95.8%(n=23)。术后无与开窗相关的并发症或神经功能障碍。在平均 10 个月的术后随访(2-17 个月)期间,1 例患者死于严重肺炎,所有左锁骨下动脉和颈动脉支架通畅,计算机断层血管造影图像未见与开窗相关的内漏。
在胸主动脉腔内修复术中,原位激光开窗是一种可行、有效、快速、可重复且安全的主动脉弓重建方法,可用于重建 3 支血管。然而,需要延长随访时间来评估该技术的稳健性。
