Emran Khadija M, Ali Shimaa M, Al-Oufi Aishah L L
Department of Chemistry, Faculty of Science, Taibah University, Madinah 30002, Saudi Arabia.
Department of Chemistry, Faculty of Science, Cairo University, Giza 12613, Egypt.
Molecules. 2017 May 10;22(5):772. doi: 10.3390/molecules22050772.

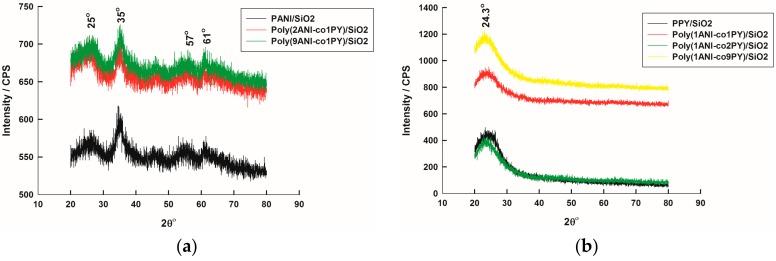

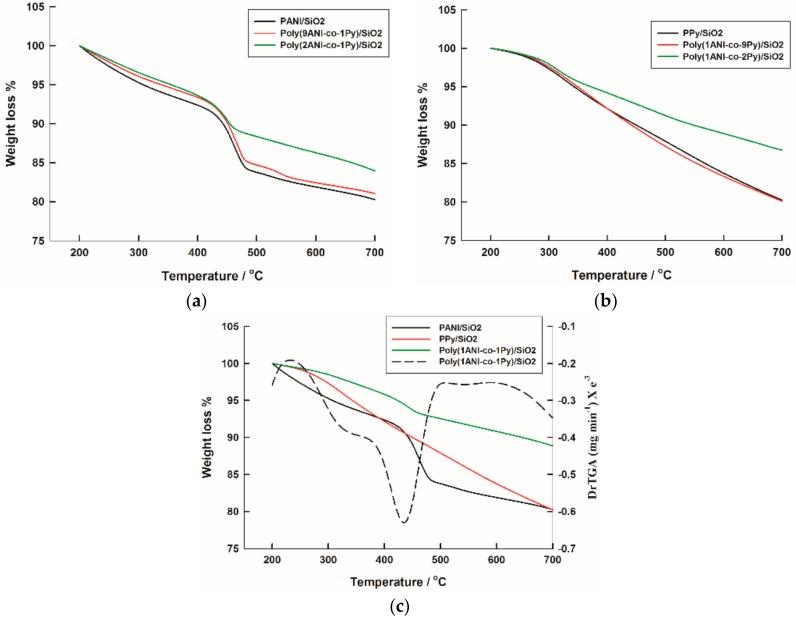

Nano-conducting copolymers of aniline (ANI) and pyrrole (Py) with silica of different starting monomer ratios are prepared by oxidative chemical polymerization. X-ray diffraction (XRD) data showed that polyaniline (PANI) is the predominant phase in copolymer composites with a higher starting ANI monomer ratio while polypyrrole (PPy) is the major phase for other prepared samples. Transmission and scanning electron microscope images ascertained XRD results where hexagonal-shaped particles are assigned to PANI/SiO₂ and poly(9ANI-co-1Py)/SiO₂ samples; the cauliflower morphology can be observed for PPy/SiO₂, poly(1ANI-co-9Py)/SiO₂, poly(1ANI-co-2Py)/SiO₂, and poly(1ANI-co-1Py)/SiO₂ samples. One-dimensional nano-fibers can be obtained by using a starting monomer ratio of 2ANI:1Py during synthesis. Thermal analysis showed that copolymerization increases the thermal stability as compared with PANI/SiO₂ and PPy/SiO₂ composites. All prepared samples were applied as sorbents for Congo red dye from aqueous solutions. It was found that the sorption capacity value was affected by the starting monomer ratio; poly(2ANI-co-1Py)/SiO₂ has the highest sorption capacity; the value is 142.9 mg g due to its highly-stabilized nano-structure.
通过氧化化学聚合制备了具有不同起始单体比例的苯胺(ANI)和吡咯(Py)与二氧化硅的纳米导电共聚物。X射线衍射(XRD)数据表明,在起始ANI单体比例较高的共聚物复合材料中,聚苯胺(PANI)是主要相,而对于其他制备的样品,聚吡咯(PPy)是主要相。透射电子显微镜和扫描电子显微镜图像证实了XRD结果,其中六边形颗粒归属于PANI/SiO₂和聚(9ANI-co-1Py)/SiO₂样品;对于PPy/SiO₂、聚(1ANI-co-9Py)/SiO₂、聚(1ANI-co-2Py)/SiO₂和聚(1ANI-co-1Py)/SiO₂样品,可以观察到菜花状形态。在合成过程中,使用2ANI:1Py的起始单体比例可获得一维纳米纤维。热分析表明,与PANI/SiO₂和PPy/SiO₂复合材料相比,共聚提高了热稳定性。所有制备的样品都用作从水溶液中吸附刚果红染料的吸附剂。发现吸附容量值受起始单体比例的影响;聚(2ANI-co-1Py)/SiO₂具有最高的吸附容量;由于其高度稳定的纳米结构,该值为142.9 mg/g。
