Nieß Alexander, Löffler Michael, Simen Joana D, Takors Ralf
Institute of Biochemical Engineering, University of StuttgartStuttgart, Germany.
Front Microbiol. 2017 Jun 28;8:1195. doi: 10.3389/fmicb.2017.01195. eCollection 2017.

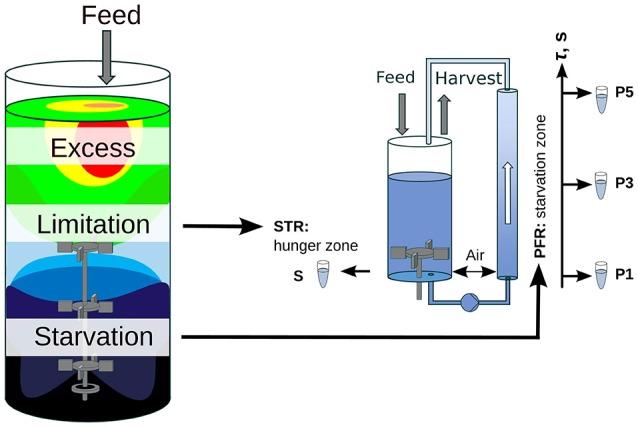

Rapidly changing concentrations of substrates frequently occur during large-scale microbial cultivations. These changing conditions, caused by large mixing times, result in a heterogeneous population distribution. Here, we present a powerful and efficient modeling approach to predict the influence of varying substrate levels on the transcriptional and translational response of the cell. This approach consists of two parts, a single-cell model to describe transcription and translation for an exemplary operon ( operon) and a second part to characterize cell distribution during the experimental setup. Combination of both models enables prediction of transcriptional patterns for the whole population. In summary, the resulting model is not only able to anticipate the experimentally observed short-term and long-term transcriptional response, it further allows envision of altered protein levels. Our model shows that locally induced stress responses propagate throughout the bioreactor, resulting in temporal, and spatial population heterogeneity. Stress induced transcriptional response leads to a new population steady-state shortly after imposing fluctuating substrate conditions. In contrast, the protein levels take more than 10 h to achieve steady-state conditions.
在大规模微生物培养过程中,底物浓度经常快速变化。由较长混合时间导致的这些变化条件,会造成群体分布不均一。在此,我们提出一种强大且高效的建模方法,以预测不同底物水平对细胞转录和翻译反应的影响。该方法由两部分组成,一部分是用于描述示例操纵子转录和翻译的单细胞模型,另一部分是用于表征实验设置期间细胞分布的模型。两个模型相结合能够预测整个群体的转录模式。总之,所得模型不仅能够预测实验观察到的短期和长期转录反应,还能进一步预测蛋白质水平的变化。我们的模型表明,局部诱导的应激反应会在整个生物反应器中传播,导致群体在时间和空间上的异质性。应激诱导的转录反应在施加波动底物条件后不久会导致新的群体稳态。相比之下,蛋白质水平需要超过10小时才能达到稳态条件。
