Maxillary Distraction Osteogenesis in Unilateral Cleft Lip and Palate Patients with Rigid External Distraction System.

AIM

Distraction osteogenesis (DO) is a treatment option for patients with maxillary hypoplasia secondary to cleft lip and palate (CLP).

PURPOSE

The aim of this study is to present a technique for maxillary DO using Le Fort I osteotomy with rigid external distraction (RED) system.

SUBJECTS AND METHODS

The patient presented in this paper was an Asian female with CLP aged 13 years and 6 months. She presented with severe midfacial deficiency with a Class III dental malocclusion with a negative overjet and concave facial profile. Cone-beam computed tomography images were recorded preoperatively and the operation performed involved a high Le Fort I osteotomy. The appliance fabricated was banded to upper first molars used for anchorage of the RED system. Distraction of the maxilla was initiated after 7-day latency period.

RESULTS

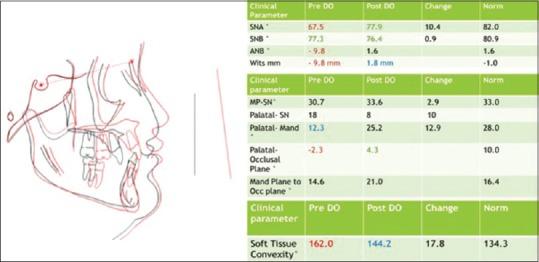

Postoperative cephalometric analysis showed maxillary advancement anteriorly and superiorly, the total distraction treatment period was 10 days. The maxillary advancement was 10.5 mm and the SNA angle increased from 67.5° to 77.9°. Furthermore, the ANB angle changed from -9.8° to 1.6° and the occlusion changed from Class III to Class I. The profile of the face changed from concave to convex and a much better esthetic result was achieved.

CONCLUSION

The study suggests RED system to be a reliable alternative procedure for the treatment of midfacial hypoplasia with or without cleft. Furthermore, it minimizes the risk of the surgical procedure and shortens the operating time.
