Acar Nihat
Department of Orthopaedics and Traumatology, Catalca Ilyas Cokay Hospital, Istanbul, Turkey.
Asian Spine J. 2017 Aug;11(4):507-512. doi: 10.4184/asj.2017.11.4.507. Epub 2017 Aug 7.
An experimental biomechanical study.
This study aims to investigate the behavior of a lamina injury in lumbar burst fractures during reduction maneuvers.
Lumbar burst fractures are frequently accompanied by a lamina fracture. Many researchers concluded that any reduction maneuver will close the fractured lamina edges and possibly crush the entrapped neural elements. This conclusion did not rely on solid biomechanical trials and was based primarily on clinical experience.

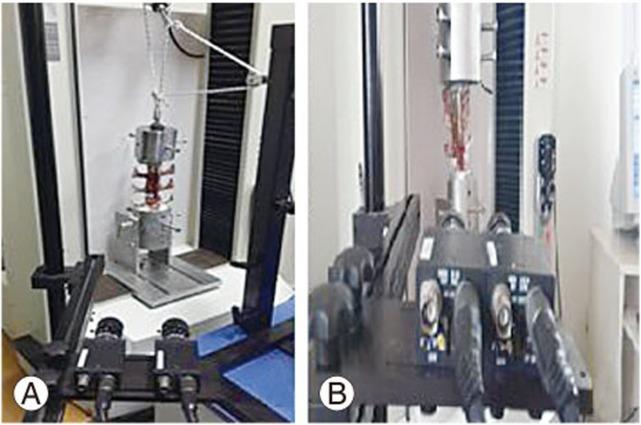

Eighteen fresh-frozen lamb spines were randomly divided into three groups. Using the preinjury and the dropped-mass technique, a burst fracture model was developed. A central laminectomy of 5 mm of the L3 lumbar spine was created to mimic a complete type of lamina fracture. To measure the movement of the fractured laminar edges, two holes were drilled on both sides of the upper and lower regions of the lamina to allow for optic marker placement. A single specific spine movement was applied to each group: traction, flexion, and extension. Gap changes were measured by camera extensometers.

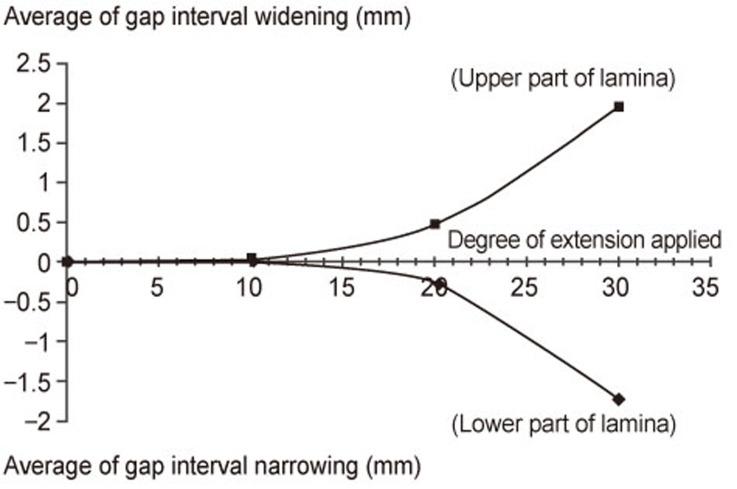

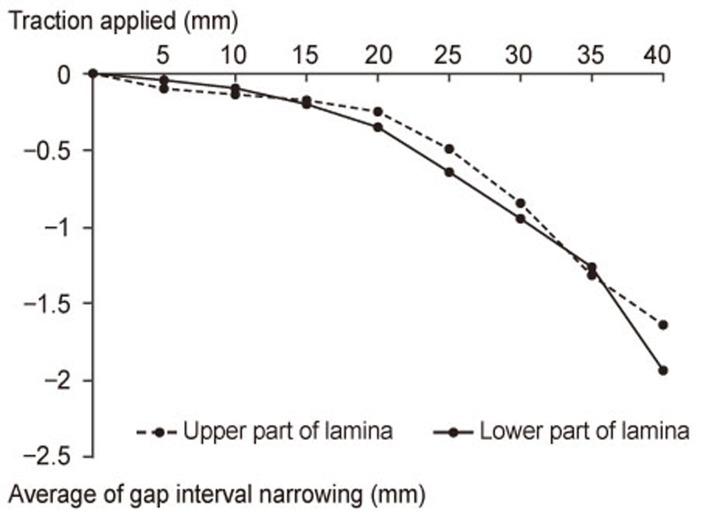

After traction, the average values of the upper and lower aspects of the lamina interval showed narrowing of 1.65±0.82 mm and 1.97±1.14 mm, respectively. No statistical significance was detected between the two aspects. The upper and lower regions of the lamina gap behaved differently during extension. At 10°, 20°, and 30°, the upper part of the lamina interval was widened by an average of 0.016±0.024, 0.29±0.32, and 1.73±1.45 mm, respectively, whereas the lower part was narrowed by an average of 0.023±0.012, 0.47±0.038, and 1.94±1.46 mm, respectively.

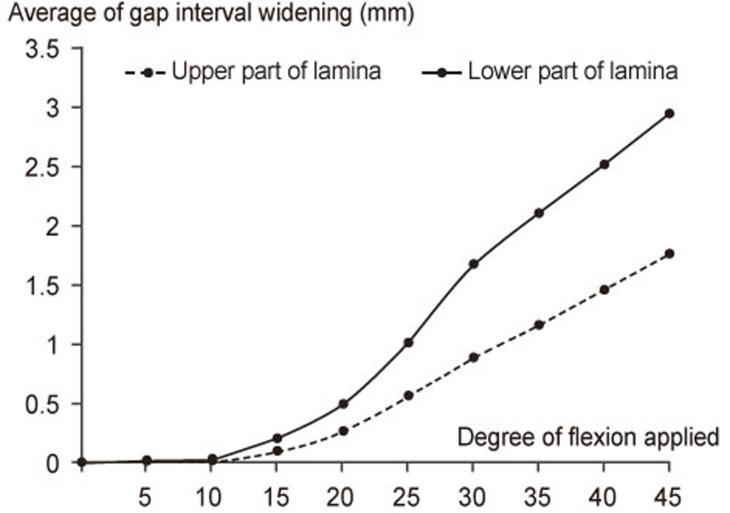

Neural element crushing may take place, particularly at the lower aspect of the fractured lamina gap during extension and throughout the whole lamina gap during traction. The lamina gap widens during flexion. Reduction maneuvers should be attempted after exploring the fractured lamina to prevent further neurological compromise.
一项实验性生物力学研究。
本研究旨在调查腰椎爆裂骨折复位操作过程中椎板损伤的情况。
腰椎爆裂骨折常伴有椎板骨折。许多研究人员得出结论,任何复位操作都会使骨折的椎板边缘闭合,并可能挤压被困的神经组织。这一结论并非基于可靠的生物力学试验,主要是基于临床经验。
将18个新鲜冷冻的羊脊柱随机分为三组。采用损伤前和落体技术建立爆裂骨折模型。在L3腰椎进行5mm的中央椎板切除术,以模拟完全性椎板骨折。为了测量骨折椎板边缘的移动,在椎板上下区域的两侧钻孔,以便放置光学标记。对每组施加单一特定的脊柱运动:牵引、屈曲和伸展。间隙变化通过相机伸长计测量。
牵引后,椎板间隙上下方面的平均值分别显示变窄1.65±0.82mm和1.97±1.14mm。两个方面之间未检测到统计学显著性差异。椎板间隙的上下区域在伸展过程中表现不同。在10°、20°和30°时,椎板间隙的上部分平均分别增宽0.016±0.024mm、0.29±0.32mm和1.73±1.45mm,而下部平均分别变窄0.023±0.012mm、0.47±0.038mm和1.94±1.46mm。
神经组织挤压可能发生,特别是在伸展过程中骨折椎板间隙的下部以及牵引过程中整个椎板间隙。屈曲时椎板间隙增宽。在探查骨折椎板后应尝试进行复位操作,以防止进一步的神经损伤。
