Patel Aabid, Svirko Yuri, Durfee Charles, Kazansky Peter G
Optoelectronics Research Centre, University of Southampton, Southampton, SO17 1BJ, United Kingdom.
Institute of Photonics, University of Eastern Finland, Joensuu, P.O. Box 111, FI-80101, Finland.
Sci Rep. 2017 Oct 10;7(1):12928. doi: 10.1038/s41598-017-13403-2.

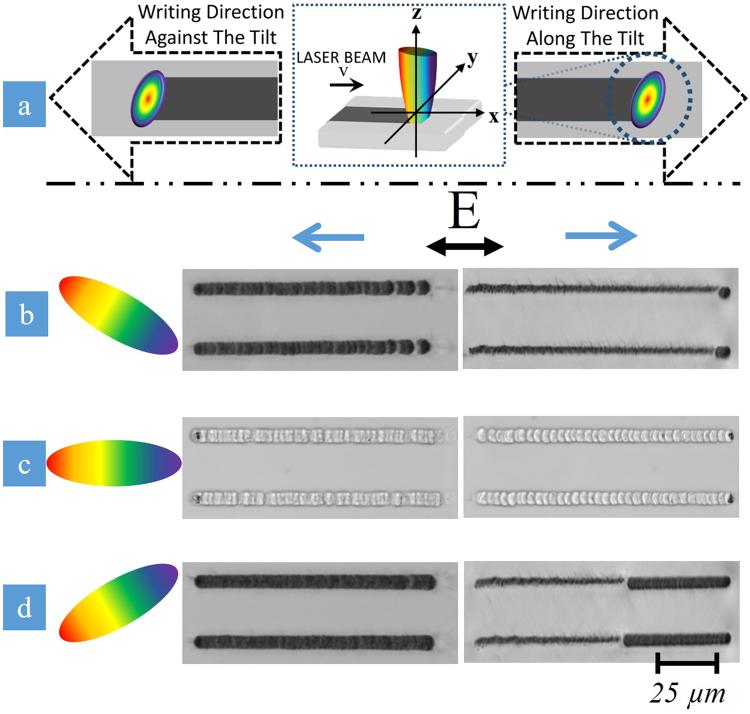

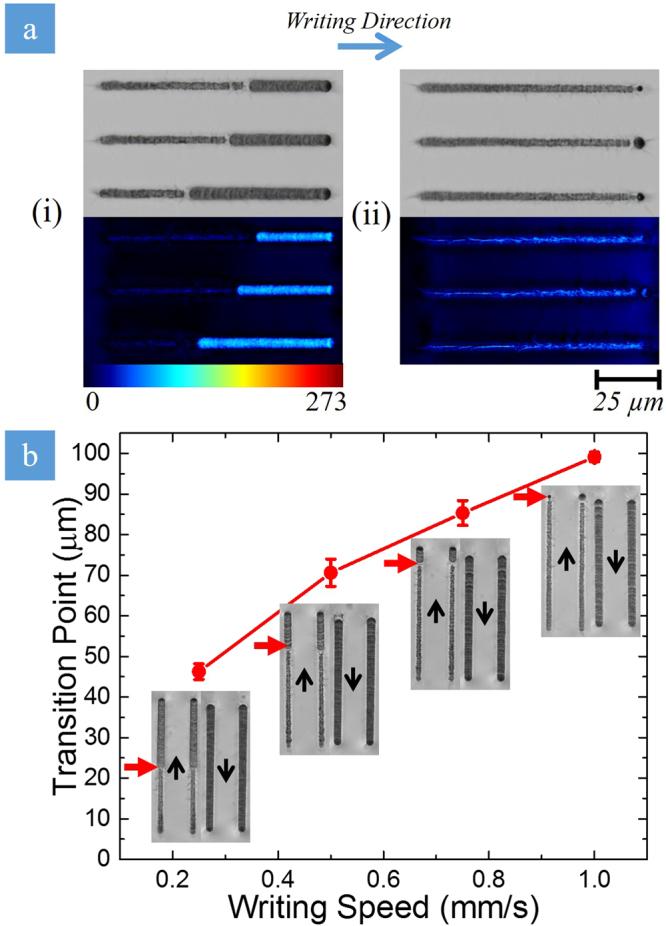

Shaping light fields in both space and time provides new degrees of freedom to manipulate light-matter interaction on the ultrafast timescale. Through this exploitation of the light field, a greater appreciation of spatio-temporal couplings in focusing has been gained, shedding light on previously unexplored parameters of the femtosecond light pulse, including pulse front tilt and wavefront rotation. Here, we directly investigate the effect of major spatio-temporal couplings on light-matter interaction and reveal unambiguously that in transparent media, pulse front tilt gives rise to the directional asymmetry of the ultrafast laser writing. We demonstrate that the laser pulse with a tilted intensity front deposits energy more efficiently when writing along the tilt than when writing against, producing either an isotropic damage-like or a birefringent nanograting structure. The directional asymmetry in the ultrafast laser writing is qualitatively described in terms of the interaction of a void trapped within the focal volume by the gradient force from the tilted intensity front and the thermocapillary force caused by the gradient of temperature. The observed instantaneous transition from the damage-like to nanograting modification after a finite writing length in a transparent dielectric is phenomenologically described in terms of the first-order phase transition.
在空间和时间上塑造光场为在超快时间尺度上操纵光与物质的相互作用提供了新的自由度。通过对光场的这种利用,人们对聚焦中的时空耦合有了更深入的认识,揭示了飞秒光脉冲以前未被探索的参数,包括脉冲前沿倾斜和波前旋转。在这里,我们直接研究主要时空耦合对光与物质相互作用的影响,并明确揭示在透明介质中,脉冲前沿倾斜会导致超快激光写入的方向不对称性。我们证明,强度前沿倾斜的激光脉冲在沿倾斜方向写入时比逆倾斜方向写入时能更有效地沉积能量,从而产生各向同性的损伤状或双折射纳米光栅结构。超快激光写入中的方向不对称性可以通过由倾斜强度前沿的梯度力捕获在焦体积内的空穴与由温度梯度引起的热毛细力之间的相互作用进行定性描述。在透明电介质中经过有限的写入长度后观察到的从损伤状到纳米光栅改性的瞬时转变,可以根据一级相变从现象学上进行描述。
