School of Agriculture and Food Engineering, Shandong University of Technology, No.12 Zhangzhou Road, Zibo, 255049, Shandong Province, P.R. China.
Shandong Provincial Engineering Research Center of Vegetable Safety and Quality Traceability, No. 12 Zhangzhou Road, Zibo, 255049, Shandong Province, P.R. China.
Sci Rep. 2017 Nov 7;7(1):14729. doi: 10.1038/s41598-017-15333-5.

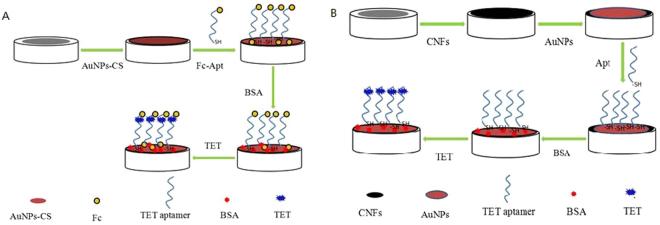

A sensitive and efficient ratiometric electrochemical aptasensor was designed for tetracycline (TET) detection in milk. The ratiometric electrochemical aptasensor was constructed by integrating two aptasensors termed as aptasensor 1 and aptasensor 2. The aptasensor 1 was fabricated that based on ferrocene (Fc) and gold nanoparticles (AuNPs) nanocomposite. Meanwhile, the aptasensor 2 was prepared that based on carbon nanofibers (CNFs) and AuNPs nanocomposite. TET-aptamer was immobilized effectively onto screen-printed carbon electrodes (SPCEs) surface through forming Au-S bond between AuNPs and thiol of aptamer at 5' end to construct the aptasensor 1 and aptasensor 2. And their detection results were calculated by ratio. Thus, the proposed ratiometric aptasensor solved the problem of low accuracy and large differences between batches. Under the optimized conditions, the TET was detected by differential pulse voltammetry (DPV). Taken advantage of ratio calculation, the as-prepared ratiometric aptasensor could detect TET quantitatively in the range of 10-10gL, with a detection limit of 3.3 × 10gL. Moreover, its applicability to TET-contaminated real samples (milk) showed an excellent agreement with the values determined by ultrahigh-performance liquid chromatography-tandem mass spectrometry (UPLC-ESI-MS/MS). With high sensitivity, accuracy and reliability, the developed ratiometric aptasensor held a great potential in TET detection for food safety.
一种灵敏高效的比率型电化学适体传感器被设计用于牛奶中环丙沙星(TET)的检测。该比率型电化学适体传感器通过整合两个适体传感器(称为适体传感器 1 和适体传感器 2)构建而成。适体传感器 1 是基于二茂铁(Fc)和金纳米粒子(AuNPs)纳米复合材料制备的。同时,基于碳纳米纤维(CNFs)和 AuNPs 纳米复合材料制备了适体传感器 2。TET-适体通过 AuNPs 和适体 5' 端巯基之间的 Au-S 键有效地固定在丝网印刷碳电极(SPCE)表面上,以构建适体传感器 1 和适体传感器 2。并通过比率计算其检测结果。因此,所提出的比率型适体传感器解决了批次间精度低和差异大的问题。在优化条件下,采用差分脉冲伏安法(DPV)检测 TET。利用比率计算的优势,所制备的比率型适体传感器可以在 10-10 gL 的范围内对 TET 进行定量检测,检测限为 3.3×10 gL。此外,它对 TET 污染的实际样品(牛奶)的适用性与超高效液相色谱-串联质谱(UPLC-ESI-MS/MS)测定的值具有极好的一致性。该开发的比率型适体传感器具有高灵敏度、准确性和可靠性,在食品安全中环丙沙星检测方面具有很大的应用潜力。
