手持式磁探针,带有永磁体和霍尔传感器,用于识别乳腺癌患者的前哨淋巴结。

Handheld magnetic probe with permanent magnet and Hall sensor for identifying sentinel lymph nodes in breast cancer patients.

机构信息

Graduate School of Engineering, The University of Tokyo, Tokyo, 113-0032, Japan.

Tochigi-Medical-Center-Shimotsuga, Tochigi, 329-4498, Japan.

出版信息

Sci Rep. 2018 Jan 19;8(1):1195. doi: 10.1038/s41598-018-19480-1.

Abstract

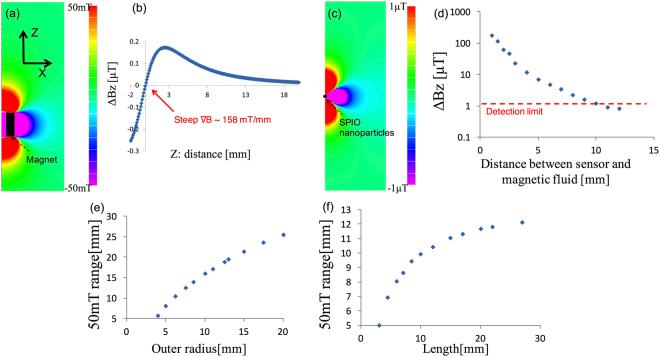

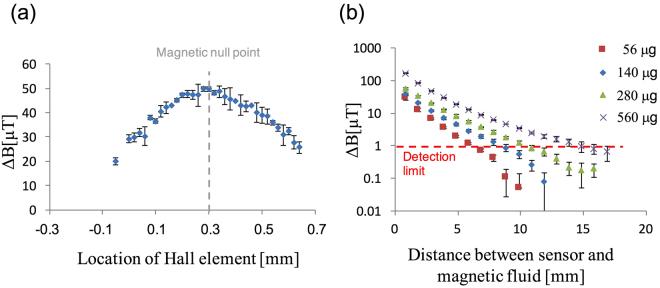

The newly developed radioisotope-free technique based on magnetic nanoparticle detection using a magnetic probe is a promising method for sentinel lymph node biopsy. In this study, a novel handheld magnetic probe with a permanent magnet and magnetic sensor is developed to detect the sentinel lymph nodes in breast cancer patients. An outstanding feature of the probe is the precise positioning of the sensor at the magnetic null point of the magnet, leading to highly sensitive measurements unaffected by the strong ambient magnetic fields of the magnet. Numerical and experimental results show that the longitudinal detection length is approximately 10 mm, for 140 μg of iron. Clinical tests were performed, for the first time, using magnetic and blue dye tracers-without radioisotopes-in breast cancer patients to demonstrate the performance of the probe. The nodes were identified through transcutaneous and ex-vivo measurements, and the iron accumulation in the nodes was quantitatively revealed. These results show that the handheld magnetic probe is useful in sentinel lymph node biopsy and that magnetic techniques are widely being accepted as future standard methods in medical institutions lacking nuclear medicine facilities.

摘要

基于使用磁性探针的磁性纳米粒子检测的新型无放射性同位素技术是前哨淋巴结活检的一种很有前途的方法。在这项研究中,开发了一种带有永磁体和磁传感器的新型手持式磁性探针,用于检测乳腺癌患者的前哨淋巴结。该探针的一个突出特点是传感器精确地定位在磁铁的磁零点,从而实现了不受磁铁强环境磁场影响的高灵敏度测量。数值和实验结果表明,对于 140μg 的铁,纵向检测长度约为 10mm。首次在乳腺癌患者中使用无放射性同位素的磁性和蓝色染料示踪剂进行了临床测试,以展示探针的性能。通过经皮和离体测量识别了节点,并定量揭示了节点中的铁积累。这些结果表明,手持式磁性探针在前哨淋巴结活检中很有用,并且磁性技术作为缺乏核医学设施的医疗机构中的未来标准方法被广泛接受。

https://cdn.ncbi.nlm.nih.gov/pmc/blobs/e22e/5775278/caa5f96068a6/41598_2018_19480_Fig1_HTML.jpg
