Elibol Kenan, Susi Toma, Argentero Giacomo, Reza Ahmadpour Monazam Mohammad, Pennycook Timothy J, Meyer Jannik C, Kotakoski Jani
Faculty of Physics, University of Vienna, Boltzmanngasse 5, A-1090 Vienna, Austria.
Chem Mater. 2018 Feb 27;30(4):1230-1238. doi: 10.1021/acs.chemmater.7b03760. Epub 2018 Feb 5.

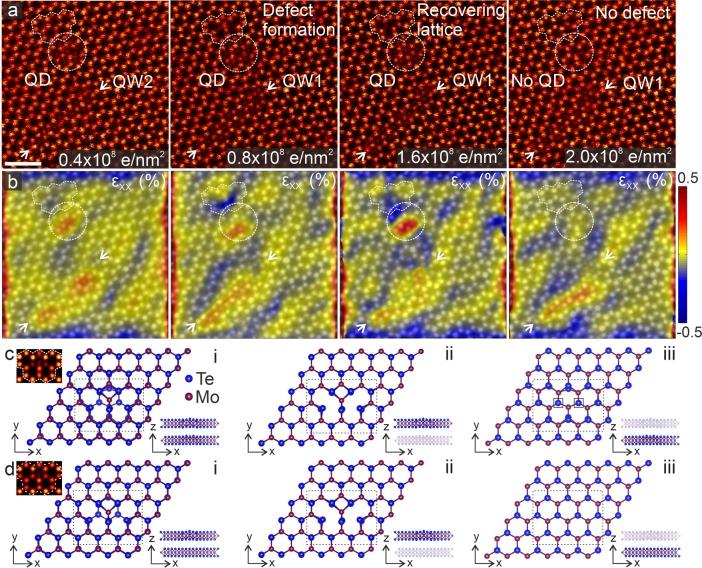

Studying the atomic structure of intrinsic defects in two-dimensional transition-metal dichalcogenides is difficult since they damage quickly under the intense electron irradiation in transmission electron microscopy (TEM). However, this can also lead to insights into the creation of defects and their atom-scale dynamics. We first show that MoTe monolayers without protection indeed quickly degrade during scanning TEM (STEM) imaging, and discuss the observed atomic-level dynamics, including a transformation from the 1H phase into 1T', 3-fold rotationally symmetric defects, and the migration of line defects between two 1H grains with a 60° misorientation. We then analyze the atomic structure of MoTe encapsulated between two graphene sheets to mitigate damage, finding the as-prepared material to contain an unexpectedly large concentration of defects. These include similar point defects (or quantum dots, QDs) as those created in the nonencapsulated material and two different types of line defects (or quantum wires, QWs) that can be transformed from one to the other under electron irradiation. Our density functional theory simulations indicate that the QDs and QWs embedded in MoTe introduce new midgap states into the semiconducting material and may thus be used to control its electronic and optical properties. Finally, the edge of the encapsulated material appears amorphous, possibly due to the pressure caused by the encapsulation.
研究二维过渡金属二硫属化物中本征缺陷的原子结构具有挑战性,因为在透射电子显微镜(TEM)的强电子辐照下它们会迅速受损。然而,这也能让我们深入了解缺陷的产生及其原子尺度的动力学。我们首先表明,未受保护的碲化钼单层在扫描透射电子显微镜(STEM)成像过程中确实会迅速降解,并讨论观察到的原子级动力学,包括从1H相转变为1T'相、三重旋转对称缺陷,以及线缺陷在两个具有60°取向差的1H晶粒之间的迁移。然后,我们分析了夹在两层石墨烯之间的碲化钼的原子结构,以减轻损伤,发现所制备的材料含有意外高浓度的缺陷。这些缺陷包括与未封装材料中产生的类似点缺陷(或量子点,QDs),以及两种不同类型的线缺陷(或量子线,QWs),它们在电子辐照下可相互转变。我们的密度泛函理论模拟表明,嵌入碲化钼中的量子点和量子线会在半导体材料中引入新的中间能隙态,因此可用于控制其电子和光学性质。最后,封装材料的边缘似乎是非晶态的,这可能是由于封装引起的压力所致。
