Kotani Hiroaki, Kaida Suzue, Ishizuka Tomoya, Sakaguchi Miyuki, Ogura Takashi, Shiota Yoshihito, Yoshizawa Kazunari, Kojima Takahiko
Department of Chemistry , Faculty of Pure and Applied Sciences , University of Tsukuba , 1-1-1 Tennoudai , Tsukuba , Ibaraki 305-8571 , Japan . Email:
Graduate School of Life Science , University of Hyogo , Kouto , Hyogo 678-1297 , Japan.
Chem Sci. 2015 Feb 1;6(2):945-955. doi: 10.1039/c4sc02285h. Epub 2014 Oct 17.

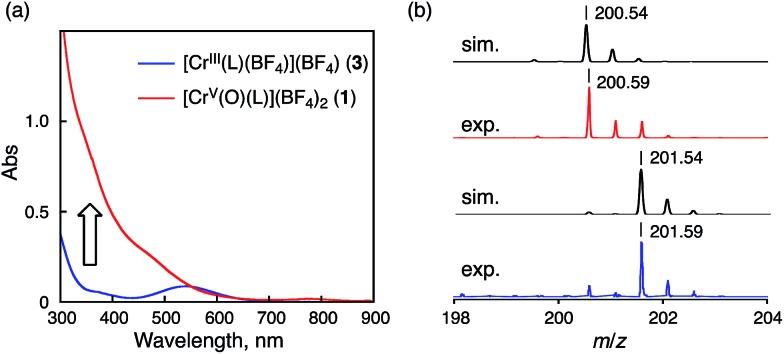

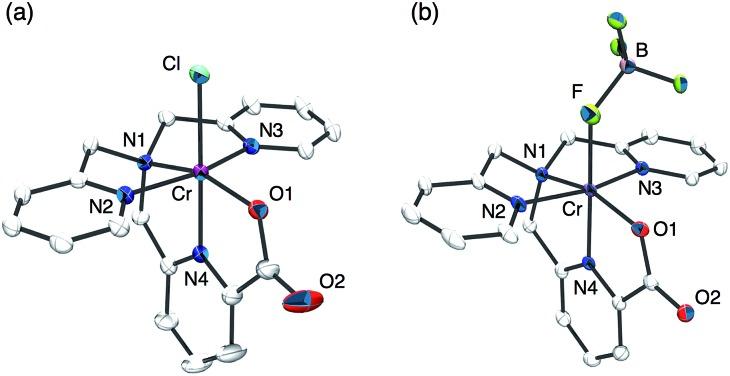

A mononuclear Cr(v)-oxo complex, Cr(O)(6-COO-tpa) (; 6-COO-tpa = ,-bis(2-pyridylmethyl)--(6-carboxylato-2-pyridylmethyl)amine) was prepared through the reaction of a Cr(iii) precursor complex with iodosylbenzene as an oxidant. Characterization of was achieved using ESI-MS spectrometry, electron paramagnetic resonance, UV-vis, and resonance Raman spectroscopies. The reduction potential () of was determined to be 1.23 V SCE in acetonitrile based on analysis of the electron-transfer (ET) equilibrium between and a one-electron donor, [Ru(bpy)] (bpy = 2,2'-bipyridine). The reorganization energy () of was also determined to be 1.03 eV in ET reactions from phenol derivatives to on the basis of the Marcus theory of ET. The smaller value in comparison with that of an Fe(iv)-oxo complex (2.37 eV) is caused by the small structural change during ET due to the dπ character of the electron-accepting LUMO of . When benzyl alcohol derivatives (R-BA) with different oxidation potentials were employed as substrates, corresponding aldehydes were obtained as the 2e-oxidized products in moderate yields as determined from H NMR and GC-MS measurements. One-step UV-vis spectral changes were observed in the course of the oxidation reactions of BA derivatives by and a kinetic isotope effect (KIE) was observed in the oxidation reactions for deuterated BA derivatives at the benzylic position as substrates. These results indicate that the rate-limiting step is a concerted proton-coupled electron transfer (PCET) from substrate to . In sharp contrast, in the oxidation of trimethoxy-BA ( = 1.22 V) by , trimethoxy-BA radical cation was observed by UV-vis spectroscopy. Thus, it was revealed that the mechanism of the oxidation reaction changed from one-step PCET to stepwise ET-proton transfer (ET/PT), depending on the redox potentials of R-BA.

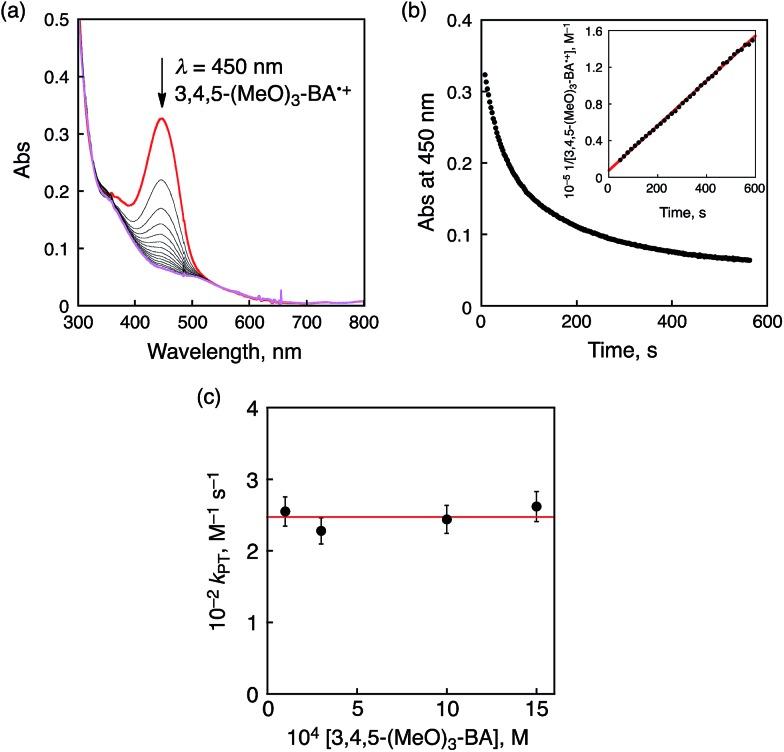

通过以亚碘酰苯作为氧化剂,使Cr(iii)前体配合物发生反应,制备了一种单核Cr(v)-氧代配合物Cr(O)(6-COO-tpa)(6-COO-tpa = α,α'-双(2-吡啶甲基)-α-(6-羧基-2-吡啶甲基)胺)。使用电喷雾电离质谱法、电子顺磁共振、紫外可见光谱和共振拉曼光谱对其进行了表征。基于对[Cr(O)(6-COO-tpa)]与单电子供体[Ru(bpy)](bpy = 2,2'-联吡啶)之间电子转移(ET)平衡的分析,确定[Cr(O)(6-COO-tpa)]在乙腈中的还原电位(E°)为1.23 V(对标准氢电极)。根据Marcus电子转移理论,在从酚衍生物到[Cr(O)(6-COO-tpa)]的电子转移反应中,[Cr(O)(6-COO-tpa)]的重组能(λ)也被确定为1.03 eV。与Fe(iv)-氧代配合物(2.37 eV)相比,[Cr(O)(6-COO-tpa)]的λ值较小是由于其电子接受最低未占分子轨道(LUMO)的dπ特性导致在电子转移过程中结构变化较小。当使用具有不同氧化电位的苄醇衍生物(R-BA)作为底物时,通过核磁共振氢谱(H NMR)和气相色谱 - 质谱联用(GC-MS)测量确定,相应的醛作为2e - 氧化产物以中等产率获得。在[Cr(O)(6-COO-tpa)]氧化BA衍生物的过程中观察到了一步紫外可见光谱变化,并且在以苄基位置氘代的BA衍生物作为底物的氧化反应中观察到了动力学同位素效应(KIE)。这些结果表明限速步骤是从底物到[Cr(O)(6-COO-tpa)]的协同质子耦合电子转移(PCET)。与之形成鲜明对比的是,在[Cr(O)(6-COO-tpa)]氧化三甲氧基 - BA(E° = 1.22 V)的过程中,通过紫外可见光谱观察到了三甲氧基 - BA自由基阳离子。因此,揭示了氧化反应的机制根据R - BA的氧化还原电位从一步PCET转变为逐步电子转移 - 质子转移(ET/PT)。
