Feurer Thomas, Bissig Benjamin, Weiss Thomas P, Carron Romain, Avancini Enrico, Löckinger Johannes, Buecheler Stephan, Tiwari Ayodhya N
Laboratory for Thin Films and Photovoltaics, Empa - Swiss Federal Laboratories for Materials Science and Technology, Duebendorf, Switzerland.
Sci Technol Adv Mater. 2018 Mar 16;19(1):263-270. doi: 10.1080/14686996.2018.1444317. eCollection 2018.

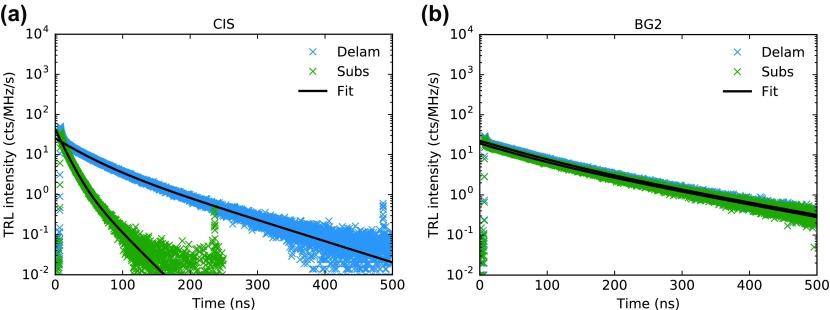

Multi-junction solar cells show the highest photovoltaic energy conversion efficiencies, but the current technologies based on wafers and epitaxial growth of multiple layers are very costly. Therefore, there is a high interest in realizing multi-junction tandem devices based on cost-effective thin film technologies. While the efficiency of such devices has been limited so far because of the rather low efficiency of semitransparent wide bandgap top cells, the recent rise of wide bandgap perovskite solar cells has inspired the development of new thin film tandem solar devices. In order to realize monolithic, and therefore current-matched thin film tandem solar cells, a bottom cell with narrow bandgap (~1 eV) and high efficiency is necessary. In this work, we present Cu(In,Ga)Se with a bandgap of 1.00 eV and a maximum power conversion efficiency of 16.1%. This is achieved by implementing a gallium grading towards the back contact into a CuInSe base material. We show that this modification significantly improves the open circuit voltage but does not reduce the spectral response range of these devices. Therefore, efficient cells with narrow bandgap absorbers are obtained, yielding the high current density necessary for thin film multi-junction solar cells.
多结太阳能电池展现出最高的光伏能量转换效率,但目前基于晶圆和多层外延生长的技术成本非常高昂。因此,人们对基于具有成本效益的薄膜技术来实现多结串联器件有着浓厚兴趣。虽然由于半透明宽带隙顶部电池效率相当低,此类器件的效率迄今受到限制,但宽带隙钙钛矿太阳能电池最近的兴起激发了新型薄膜串联太阳能器件的发展。为了实现单片式且因此电流匹配的薄膜串联太阳能电池,需要一个具有窄带隙(约1电子伏特)且高效率的底部电池。在这项工作中,我们展示了带隙为1.00电子伏特、最大功率转换效率为16.1%的铜铟镓硒(Cu(In,Ga)Se)。这是通过在CuInSe基础材料中朝着背接触实施镓梯度来实现的。我们表明,这种改性显著提高了开路电压,但并未减小这些器件的光谱响应范围。因此,获得了具有窄带隙吸收体的高效电池,产生了薄膜多结太阳能电池所需的高电流密度。
