From the ‡Evosep Biosystems, Odense, Denmark.
§Department of Proteomics and Signal Transduction, Max Planck Institute of Biochemistry, Martinsried, Germany.
Mol Cell Proteomics. 2018 Nov;17(11):2284-2296. doi: 10.1074/mcp.TIR118.000853. Epub 2018 Aug 13.

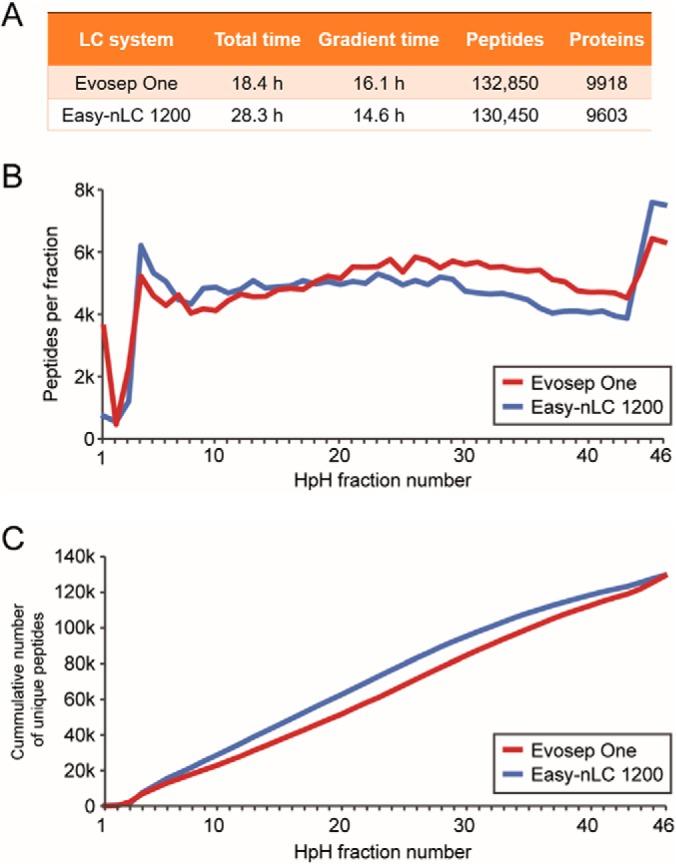

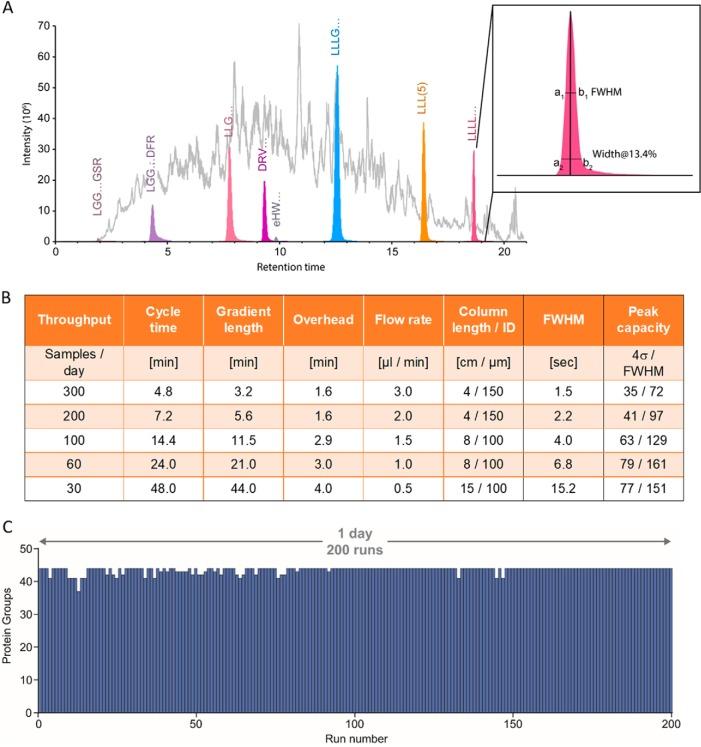

To further integrate mass spectrometry (MS)-based proteomics into biomedical research and especially into clinical settings, high throughput and robustness are essential requirements. They are largely met in high-flow rate chromatographic systems for small molecules but these are not sufficiently sensitive for proteomics applications. Here we describe a new concept that delivers on these requirements while maintaining the sensitivity of current nano-flow LC systems. Low-pressure pumps elute the sample from a disposable trap column, simultaneously forming a chromatographic gradient that is stored in a long storage loop. An auxiliary gradient creates an offset, ensuring the re-focusing of the peptides before the separation on the analytical column by a single high-pressure pump. This simplified design enables robust operation over thousands of sample injections. Furthermore, the steps between injections are performed in parallel, reducing overhead time to a few minutes and allowing analysis of more than 200 samples per day. From fractionated HeLa cell lysates, deep proteomes covering more than 130,000 sequence unique peptides and close to 10,000 proteins were rapidly acquired. Using this data as a library, we demonstrate quantitation of 5200 proteins in only 21 min. Thus, the new system - termed Evosep One - analyzes samples in an extremely robust and high throughput manner, without sacrificing in depth proteomics coverage.
为了进一步将基于质谱(MS)的蛋白质组学整合到生物医学研究中,尤其是整合到临床环境中,高通量和稳健性是必不可少的要求。这些要求在用于小分子的高通量色谱系统中得到了很大程度的满足,但这些系统对于蛋白质组学应用来说不够灵敏。在这里,我们描述了一个新概念,该概念满足了这些要求,同时保持了当前纳流 LC 系统的灵敏度。低压泵从一次性捕集柱中洗脱样品,同时形成储存在长存储环中的色谱梯度。辅助梯度会创建一个偏移量,确保在通过单个高压泵在分析柱上进行分离之前,重新聚焦肽。这种简化的设计能够实现数千次样品注入的稳健运行。此外,注入之间的步骤是并行执行的,将总耗时减少到几分钟,并允许每天分析超过 200 个样品。从分馏的 HeLa 细胞裂解物中,我们快速获得了覆盖超过 130,000 个序列独特肽和近 10,000 个蛋白质的深度蛋白质组。使用该数据作为库,我们仅用 21 分钟即可定量 5200 个蛋白质。因此,新系统——称为 Evosep One——以极其稳健和高通量的方式分析样品,而不会牺牲深度蛋白质组学覆盖度。
