Liu Shude, Yin Ying, Hui Kwan San, Hui Kwun Nam, Lee Su Chan, Jun Seong Chan
School of Mechanical Engineering Yonsei University Seoul 120-749 South Korea.
Guangxi Key Laboratory of Information Materials Guilin University of Electronic Technology Guilin 541004 P. R. China.
Adv Sci (Weinh). 2018 Aug 11;5(10):1800733. doi: 10.1002/advs.201800733. eCollection 2018 Oct.

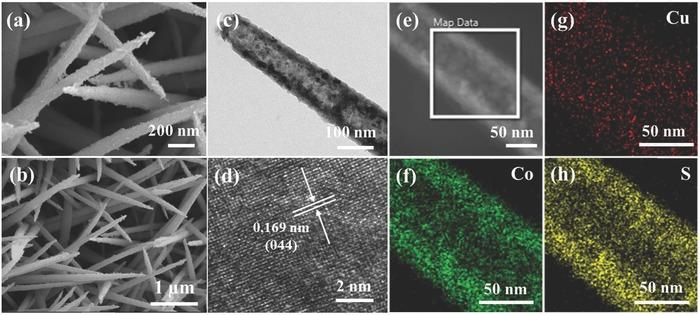

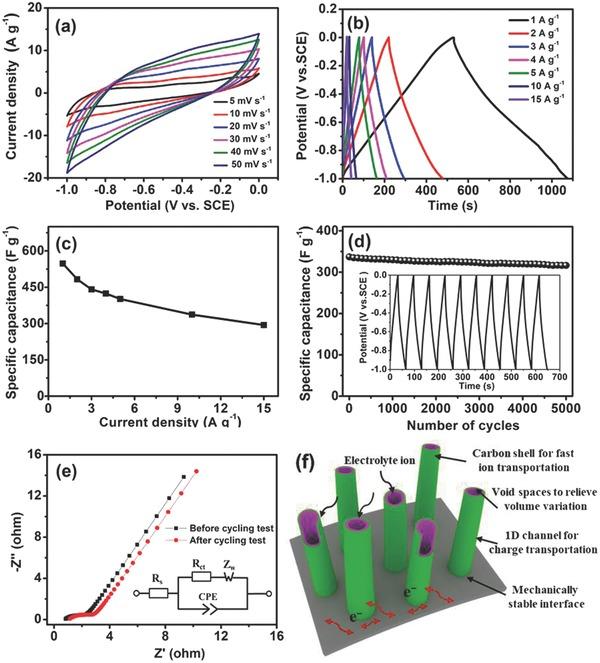

Flexible quasi-/all-solid-state supercapacitors have elicited scientific attention to fulfill the explosive demand for portable and wearable electronic devices. However, the use of electrode materials faces several challenges, such as intrinsically slow kinetics and volume change upon cycling, which impede the energy output and electrochemical stability. This study presents well-aligned molybdenum dioxide@nitrogen-doped carbon (MoO@NC) and copper cobalt sulfide (CuCoS) tubular nanostructures grown on flexible carbon fiber for use as electrode materials in supercapacitors. Benefiting from the chemically stable interfaces, affluent active sites, and efficient 1D electron transport, the MoO@NC and CuCoS nanostructures integrated on conductive substrates deliver excellent electrochemical performance. A flexible quasi-solid-state asymmetric supercapacitor composed of MoO@NC as the negative electrode and CuCoS as the positive electrode achieves an ultrahigh energy density of 65.1 W h kg at a power density of 800 W kg and retains a favorable energy density of 27.6 W h kg at an ultrahigh power density of 12.8 kW kg. Moreover, it demonstrates good cycling performance with 90.6% capacitance retention after 5000 cycles and excellent mechanical flexibility by enabling 92.2% capacitance retention after 2000 bending cycles. This study provides an effective strategy to develop electrode materials with superior electrochemical performance for flexible supercapacitors.
柔性准固态/全固态超级电容器已引起科学界的关注,以满足便携式和可穿戴电子设备的爆发式需求。然而,电极材料的使用面临着几个挑战,例如固有的缓慢动力学和循环过程中的体积变化,这阻碍了能量输出和电化学稳定性。本研究展示了在柔性碳纤维上生长的排列良好的二氧化钼@氮掺杂碳(MoO@NC)和硫化铜钴(CuCoS)管状纳米结构,用作超级电容器的电极材料。得益于化学稳定的界面、丰富的活性位点和高效的一维电子传输,集成在导电基底上的MoO@NC和CuCoS纳米结构具有优异的电化学性能。一种由MoO@NC作为负极和CuCoS作为正极组成的柔性准固态不对称超级电容器,在功率密度为800 W kg时实现了65.1 W h kg的超高能量密度,在12.8 kW kg的超高功率密度下保持了27.6 W h kg的良好能量密度。此外,它还表现出良好的循环性能,在5000次循环后电容保持率为90.6%,并且通过在2000次弯曲循环后实现92.2%的电容保持率而具有优异的机械柔韧性。本研究为开发具有优异电化学性能的柔性超级电容器电极材料提供了一种有效策略。
