Lin Bon-Jour, Hong Kun-Ting, Lin Chin, Chung Tzu-Tsao, Tang Chi-Tun, Hueng Dueng-Yuan, Hsia Chung-Ching, Ju Da-Tong, Ma Hsin-I, Liu Ming-Ying, Chen Yuan-Hao
Department of Neurological Surgery, Tri-Service General Hospital.
Graduate Institute of Life Sciences, National Defense Medical Center, Taipei, Taiwan, Republic of China.
Medicine (Baltimore). 2018 Nov;97(45):e13111. doi: 10.1097/MD.0000000000013111.

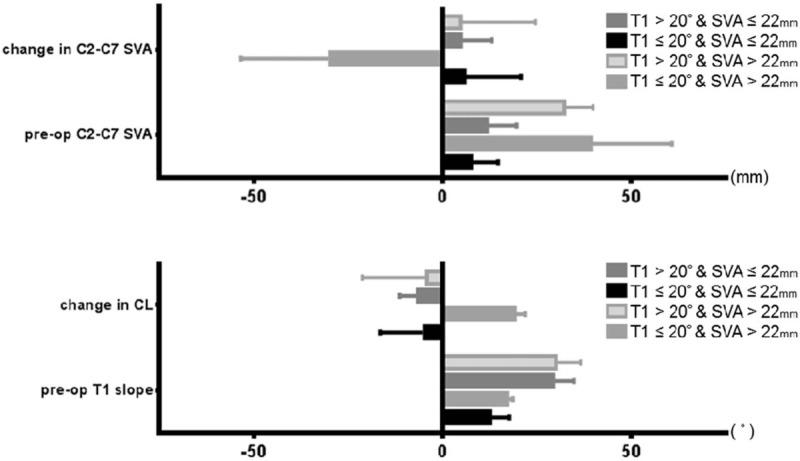

The aim of this study is to analyze the combined impact of preoperative T1 slope (T1S) and C2-C7 sagittal vertical axis (C2-C7 SVA) on determination of cervical alignment after laminoplasty.Forty patients undergoing laminoplasty for cervical spondylotic myelopathy (CSM) with more than 2 years follow-up were enrolled. Three parameters, including cervical lordosis, T1S, and C2-C7 SVA, were measured by preoperative and postoperative radiographs. Receiver operating characteristics (ROC) curve analysis was used to determine the optimal cut-off values of preoperative T1S and C2-C7 SVA for predicting postoperative loss of cervical lordosis. Patients were classified into 4 categories based on cut-off values of preoperative T1S and C2-C7 SVA. The primary outcome was postoperative C2-C7 SVA. Change in radiographic parameters between 4 groups were compared and analyzed.Optimal cut-off values for predicting loss of cervical lordosis were T1S of 20 degrees and C2-C7 SVA of 22 mm. Patients with small C2-C7 SVA, no matter what the value of T1S, got slight loss of cervical lordosis and increase in C2-C7 SVA. Patients with low T1S and large SVA (T1 ≤20° and SVA >22 mm) got postoperative correction of kyphosis and decrease of C2-C7 SVA. However, patients with high T1S and large SVA (T1 >20° and SVA >22 mm) got mean postoperative C2-C7 SVA value of 37.06 mm, close to the threshold value of 40 mm.Determination of cervical alignment after laminoplasty relies on the equilibrium between destruction of cervical structure, kyphotic force, and adaptive compensation of whole spine, lordotic force. Lower T1S means bigger compensatory ability to adjust different severity of cervical sagittal malalignment, and vice versa.
本研究的目的是分析术前T1斜率(T1S)和C2-C7矢状垂直轴(C2-C7 SVA)对椎板成形术后颈椎排列判定的联合影响。纳入40例行颈椎后路椎板成形术治疗脊髓型颈椎病(CSM)且随访超过2年的患者。通过术前和术后X线片测量包括颈椎前凸、T1S和C2-C7 SVA在内的三个参数。采用受试者工作特征(ROC)曲线分析来确定术前T1S和C2-C7 SVA预测术后颈椎前凸丢失的最佳截断值。根据术前T1S和C2-C7 SVA的截断值将患者分为4类。主要观察指标为术后C2-C7 SVA。比较并分析4组之间影像学参数的变化。预测颈椎前凸丢失的最佳截断值为T1S 20°和C2-C7 SVA 22 mm。无论T1S值如何,C2-C7 SVA小的患者颈椎前凸丢失轻微,C2-C7 SVA增加。T1S低且SVA大(T1≤20°且SVA>22 mm)的患者术后驼背得到矫正,C2-C7 SVA减小。然而,T1S高且SVA大(T1>20°且SVA>22 mm)的患者术后C2-C7 SVA平均为37.06 mm,接近40 mm的阈值。椎板成形术后颈椎排列的判定依赖于颈椎结构破坏、后凸力与整个脊柱适应性代偿、前凸力之间的平衡。较低的T1S意味着对不同严重程度颈椎矢状面畸形的代偿能力更大,反之亦然。
