Meng Xiangdan, Zhang Kai, Dai Wenhao, Cao Yu, Yang Fan, Dong Haifeng, Zhang Xueji
Beijing Key Laboratory for Bioengineering and Sensing Technology , Research Center for Bioengineering and Sensing Technology , School of Chemistry and Biological Engineering , University of Science & Technology Beijing , Beijing 100083 , P. R. China . Email:
Beijing Advanced Innovation Center for Materials Genome Engineering , University of Science and Technology Beijing , Beijing 100083 , P. R. China.
Chem Sci. 2018 Aug 7;9(37):7419-7425. doi: 10.1039/c8sc02858c. eCollection 2018 Oct 7.

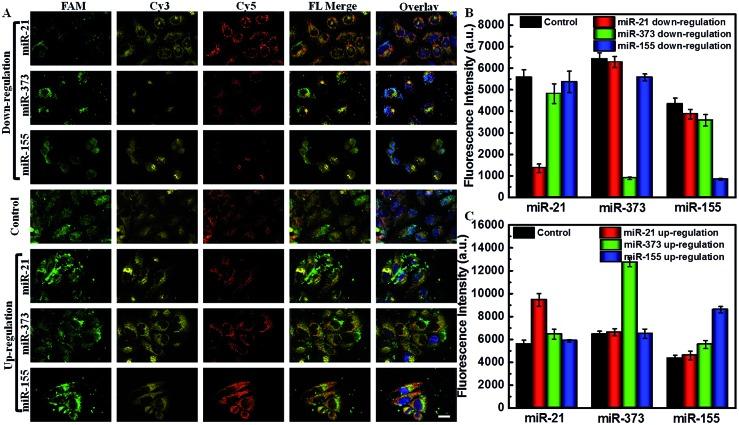

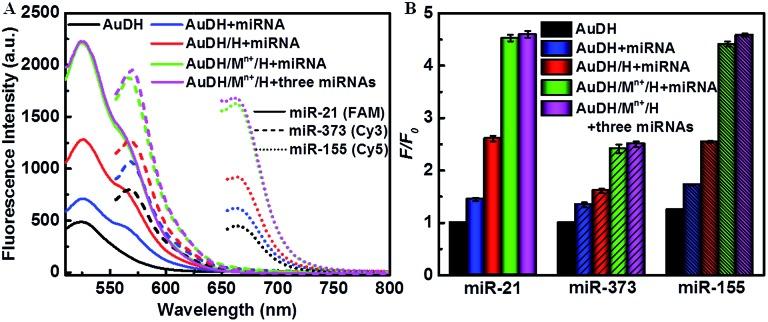

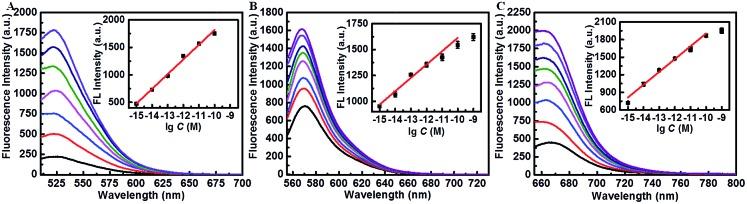

Non-invasively imaging multiplex microRNAs (miRNAs) in living cells is pivotal to understanding their physiological functions and pathological development due to the key regulatory roles of miRNAs in gene expression. However, developing smart delivery systems with large gene loading capacity, biocompatibility and responsiveness remains a significant challenge. Herein, we successfully incorporated DNA-capped Au nanoparticles (NPs) and their complementary fluorescent DNA sequences into a porous 3D hydrogel network (AuDH), in which hairpin-locked DNAzyme strands and active metal ions were loaded (AuDH/M /H) for simultaneously imaging multiplex miRNAs in living cells. After transfection into cells, the specific miRNAs trigger the strand-displacement reaction and sequentially activate the DNAzyme-assisted target recycling, leading to a strong increase in the corresponding fluorescence intensity for imaging. This enables simultaneous assessment of the abundance of multiplex cancer-related miRNAs, even if at a very low expression level, in different cells through the different fluorescence intensities due to the dual signal amplification, and the change in abundance of miRNAs induced by siRNA or miRNA mimics in living cells can also be efficiently monitored. The versatile and responsive DNA hydrogel system holds great potential for miRNA biomedical applications.
由于微小RNA(miRNA)在基因表达中起关键调控作用,对活细胞中的多重miRNA进行无创成像对于理解其生理功能和病理发展至关重要。然而,开发具有大基因负载能力、生物相容性和响应性的智能递送系统仍然是一项重大挑战。在此,我们成功地将DNA包覆的金纳米颗粒(NPs)及其互补荧光DNA序列整合到多孔3D水凝胶网络(AuDH)中,其中负载了发夹锁定的DNAzyme链和活性金属离子(AuDH/M /H),用于在活细胞中同时成像多重miRNA。转染到细胞中后,特定的miRNA触发链置换反应并依次激活DNAzyme辅助的靶循环,导致相应荧光强度强烈增加以进行成像。这使得通过双信号放大产生的不同荧光强度,能够同时评估不同细胞中多重癌症相关miRNA的丰度,即使在非常低的表达水平下也是如此,并且还可以有效地监测活细胞中由siRNA或miRNA模拟物诱导的miRNA丰度变化。这种多功能且响应性的DNA水凝胶系统在miRNA生物医学应用中具有巨大潜力。
